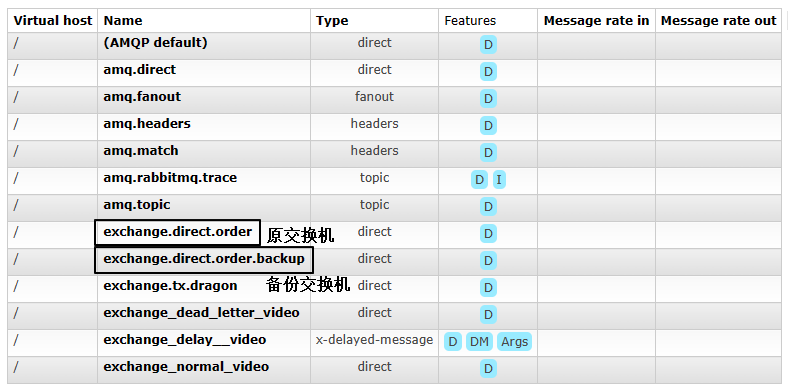

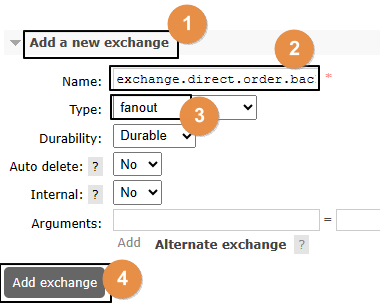

1、创建备份交换机

注意：备份交换机一定要选择fanout类型，因为原交换机转入备份交换机时并不会指定路由键

image-20231203231926247

image-20231202183701454

2、创建备份交换机要绑定的队列

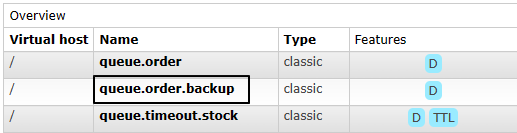

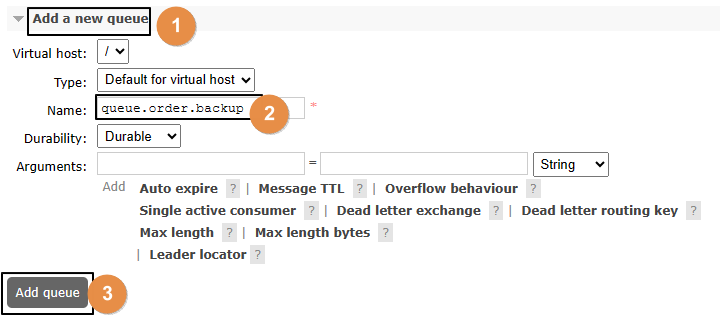

①创建队列

image-20231202183906676

image-20231202183949674

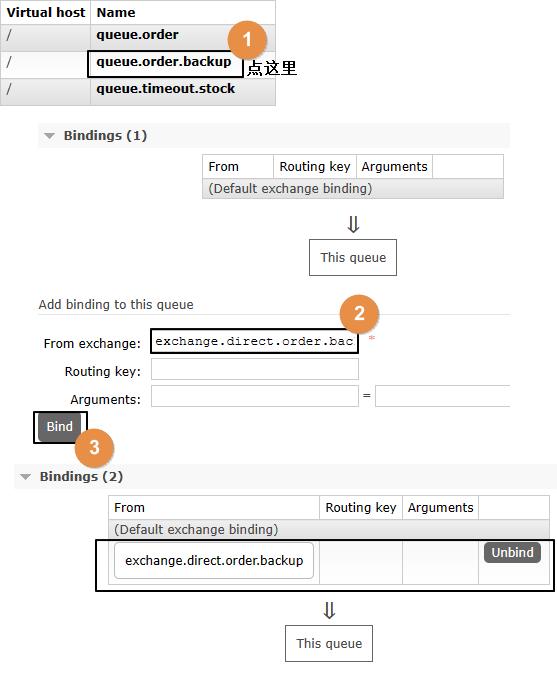

②绑定交换机

注意：这里是要和备份交换机绑定

image-20231203232801504

3、针对备份队列创建消费端监听器

    public static final String EXCHANGE_DIRECT_BACKUP = "exchange.direct.order.backup";
    public static final String QUEUE_NAME_BACKUP  = "queue.order.backup";

    @RabbitListener(bindings = @QueueBinding(
            value = @Queue(value = QUEUE_NAME_BACKUP, durable = "true"),
            exchange = @Exchange(value = EXCHANGE_DIRECT_BACKUP),
            key = {""}
    ))
    public void processMessageBackup(String dateString,
                                     Message message,
                                     Channel channel) {
        log.info("BackUp: " + dateString);
    }

二、设定备份关系

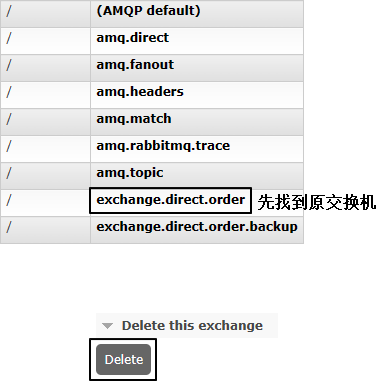

1、原交换机删除

·

image-20231202184840124

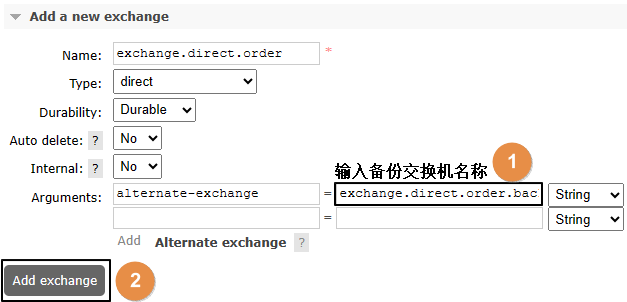

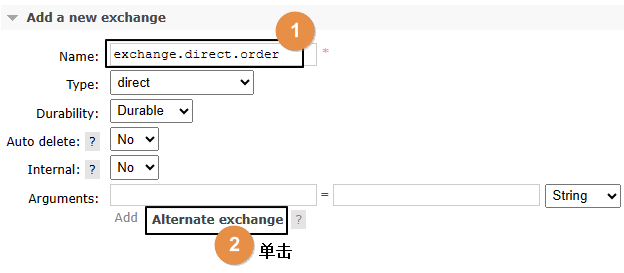

2、重新创建原交换机

image-20231202185211633

image-20231202185342087

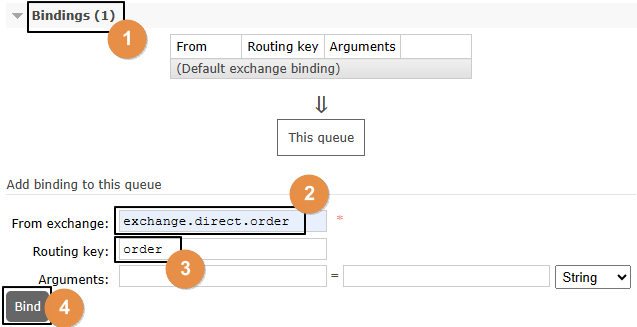

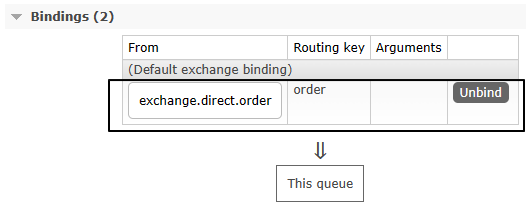

3、原交换机重新绑定原队列

image-20231202190111581

image-20231202185955138

image-20231202190036520

三、测试

• 启动消费者端
• 发送消息，但是路由键不对，于是转入备份交换机
