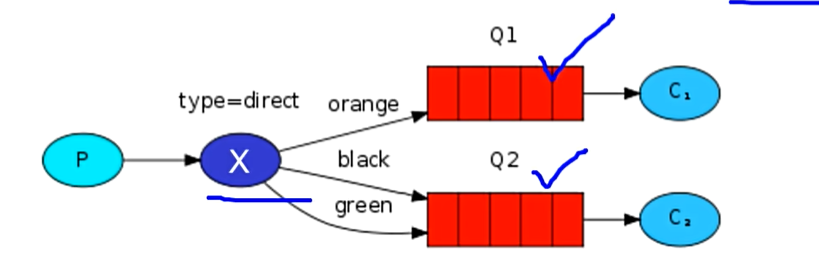

1. 通过路由绑定的方式，把交换机和队列连接起来。
2. 交换机和队列通过路由键进行绑定。
3. 生产者发送消息时不仅要指定交换机还要指定路由键。
4. 交换机接收到消息会发送到路由键绑定的队列。
5. 在编码上Publish/Subscrible发布与订阅模式的区别。
   • 交换机的类型为：Direct。
   • 队列绑定交换机的时候需要指定routing key。

一、生产者代码

package com.atguigu.rabbitmq.routing;

import com.atguigu.rabbitmq.util.ConnectionUtil;
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

public class Producer {

    public static void main(String[] args) throws Exception {

      Connection connection = ConnectionUtil.getConnection();

      Channel channel = connection.createChannel();

      String exchangeName = "test_direct";

      // 创建交换机
      channel.exchangeDeclare(exchangeName,BuiltinExchangeType.DIRECT,true,false,false,null);

      // 创建队列
      String queue1Name = "test_direct_queue1";
      String queue2Name = "test_direct_queue2";

      // 声明（创建）队列
      channel.queueDeclare(queue1Name,true,false,false,null);
      channel.queueDeclare(queue2Name,true,false,false,null);

      // 队列绑定交换机
      // 队列1绑定error
      channel.queueBind(queue1Name,exchangeName,"error");

      // 队列2绑定info error warning
      channel.queueBind(queue2Name,exchangeName,"info");
      channel.queueBind(queue2Name,exchangeName,"error");
      channel.queueBind(queue2Name,exchangeName,"warning");

        String message = "日志信息：张三调用了delete方法.错误了,日志级别warning";

        // 发送消息
        channel.basicPublish(exchangeName,"warning",null,message.getBytes());
        System.out.println(message);

      // 释放资源
        channel.close();
        connection.close();

    }

}

二、消费者代码

1、消费者1号

package com.atguigu.rabbitmq.routing;

import com.atguigu.rabbitmq.util.ConnectionUtil;
import com.rabbitmq.client.*;
import java.io.IOException;

public class Consumer1 {

    public static void main(String[] args) throws Exception {

        Connection connection = ConnectionUtil.getConnection();

        Channel channel = connection.createChannel();

        String queue1Name = "test_direct_queue1";

        channel.queueDeclare(queue1Name,true,false,false,null);

        Consumer consumer = new DefaultConsumer(channel){

            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {

                System.out.println("body："+new String(body));
                System.out.println("Consumer1 将日志信息打印到控制台.....");

            }

        };

        channel.basicConsume(queue1Name,true,consumer);

    }

}

2、消费者2号

package com.atguigu.rabbitmq.routing;

import com.atguigu.rabbitmq.util.ConnectionUtil;
import com.rabbitmq.client.*;
import java.io.IOException;

public class Consumer2 {

    public static void main(String[] args) throws Exception {

        Connection connection = ConnectionUtil.getConnection();

        Channel channel = connection.createChannel();

        String queue2Name = "test_direct_queue2";

        channel.queueDeclare(queue2Name,true,false,false,null);

        Consumer consumer = new DefaultConsumer(channel){

            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {

                System.out.println("body："+new String(body));
                System.out.println("Consumer2 将日志信息存储到数据库.....");

            }

        };

        channel.basicConsume(queue2Name,true,consumer);

    }

}

三、运行结果

1、绑定关系

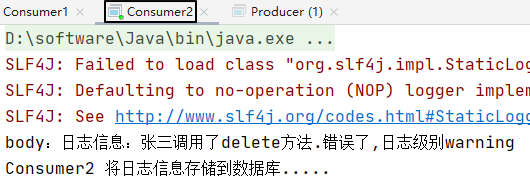

2、消费消息
