1. 依赖注入机制及其运用

1870字约6分钟

=== Dependency Injection (DI) 依赖注入

1. 依赖注入机制及其运用

依赖注入是指将容器的对象作为值，传递给容器的另外的对象的属性
示例容器 class B{} 赋值给 class A{private B b;} 中的 B 属性

== 依赖注入使用方式 ==

容器对象构造方法注入
容器对象 Setter方法注入
容器对象属性注入 [不被推荐不符合面向对象规范]
容器@Bean方法参数注入
容器@Bean方法调用注入

=== 注入形式上分为类型注入和名称注入【一般使用类型注入即可】
=== 以下是注入示例

pom.xml

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-context</artifactId>
    <version>6.1.0</version>
</dependency>

SpringContextConfiguration.java

package org.example.spring.conf;

import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;

@Configuration
@ComponentScan(basePackages = "org.example.spring")
public class SpringContextConfiguration {
}

Application.java

package org.example.spring.api;

import org.example.spring.conf.SpringContextConfiguration;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;

public class Application {
    public static void main(String[] args) {
        AnnotationConfigApplicationContext context =
                new AnnotationConfigApplicationContext(SpringContextConfiguration.class);

        // 操作容器

        context.close();
    }
}

01. 构造方法注入

=== 将容器对象通过构造方法注入给其他容器对象的属性

Person.java

package org.example.spring.entity;


import org.springframework.stereotype.Component;

// @Component
// public class Person {
//     private Book book;
//
//     public Person(Book book) {
//         this.book = book;
//     }
//
//     public Book getBook() {
//         return book;
//     }
//
//     @Override
//     public String toString() {
//         return "Person{" +
//                 "book=" + book +
//                 '}';
//     }
//
// }


@Component
// jdk14 提供了record类，方便注入
public record Person(Book book) {

}

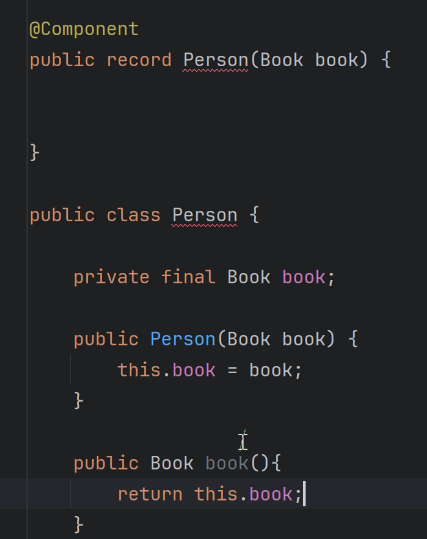

以下两种方式是相等的：

Book.java

package org.example.spring.entity;


import org.springframework.stereotype.Component;

@Component
public class Book {
    @Override
    public String toString() {
        return "Book{}";
    }
}

02. Setter方法注入

=== Setter方法注入必须配合 @Autowired 注解通知 Spring 注入

Apple.java

package org.example.spring.entity;


import org.springframework.stereotype.Component;

@Component
public class Apple {
    @Override
    public String toString() {
        return "Apple{}";
    }
}

Student.java

package org.example.spring.entity;


import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

@Component
public class Student {

    private Apple apple;

    public Apple getApple() {
        return apple;
    }

    // 需要使用 @Autowired 通知spring需要注入Apple
    @Autowired
    public void setApple(Apple apple) {
        this.apple = apple;
    }

    @Override
    public String toString() {
        return "Student{" +
                "apple=" + apple +
                '}';
    }
}

03. 属性注入

=== 属性注入必须配合 @Autowired 注解通知 Spring 注入

属性注入不符合面向对象规范、对象私有化成员不应该被外部知悉和访问
Role.java

package org.example.spring.entity;


import org.springframework.stereotype.Component;

@Component
public class Role {
    @Override
    public String toString() {
        return "Role{}";
    }
}

User.java

package org.example.spring.entity;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

@Component
public class User {

    // 不推荐
    @Autowired
    private Role role;

    @Override
    public String toString() {
        return "User{" +
                "role=" + role +
                '}';
    }


}

04. @Bean方法参数注入

=== @Bean注解的方法参数可以自动注入、不需要 @Autowired 注解

SysUser.java

package org.example.spring.entity;

public class SysUser {
    private Role role;

    public void setRole(Role role) {
        this.role = role;
    }

    public Role getRole() {
        return role;
    }

    @Override
    public String toString() {
        return "SysUser{" +
                "role=" + role +
                '}';
    }
}

SpringContextConfiguration.java

package org.example.spring.conf;

import org.example.spring.entity.Role;
import org.example.spring.entity.SysUser;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;

@Configuration
@ComponentScan(basePackages = "org.example.spring")
public class SpringContextConfiguration {

    @Bean
    public SysUser sysUser(Role role){
        SysUser sysUser = new SysUser();
        sysUser.setRole(role);
        return sysUser;
    }

}

05. @Bean方法调用注入

=== 调用 @Bean 注解的方法得到其返回值进行注入 Spring 自动完成

SpringContextConfiguration.java

package org.example.spring.conf;

import org.example.spring.entity.Role;
import org.example.spring.entity.SysUser;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;

@Configuration
@ComponentScan(basePackages = "org.example.spring")
public class SpringContextConfiguration {

    @Bean
    public Role role() {
        return new Role();
    }

    // @Bean
    // public SysUser sysUser(Role role) {
    //     SysUser sysUser = new SysUser();
    //     sysUser.setRole(role);
    //     return sysUser;
    // }

    @Bean
    public SysUser sysUser() {
        SysUser sysUser = new SysUser();
        sysUser.setRole(this.role());
        return sysUser;
    }

}

2. 类型注入冲突解决

=== 当同类型多个对象在容器中进行注入时、Spring 会因无法确认使用那个对象而抛出异常

问题
record Computer(Usb usb)
- Usb{}
  - Usb2
  - Usb3

解决方式

缩小注入类型
@Primary 声明总是注入该类型
@Qualifier 指定容器对象 ID 进行注入

=== 示例代码

package org.example.spring.service;


import org.springframework.stereotype.Component;

@Component
public record Computer(Usb usb) {
}


public interface Usb {
}

@Component
public class Usb2 implements Usb {
    @Override
    public String toString() {
        return "Usb2{}";
    }
}


@Component
public class Usb3 implements Usb {
    @Override
    public String toString() {
        return "Usb3{}";
    }
}

01. 缩小类型

Computer.java

package org.example.spring.service;

import org.springframework.stereotype.Component;

@Component
public record Computer(Usb2 usb) {
}

02. @Primary

=== @Primary 注解于同类型的其中一个对象上、总是注入该类型时总是注入该对象

@Primary 可配合 @Component .. @Bean 注解于类或 @Bean方法
Usb2.java

package org.example.spring.service;

import org.springframework.context.annotation.Primary;
import org.springframework.stereotype.Component;

@Component
@Primary
public class Usb2 implements Usb {
    @Override
    public String toString() {
        return "Usb2{}";
    }
}

03. @Qualifier

=== @Qualifier("容器对象ID") 可注解于类、@Bean 方法、参数等、属性

@Qualifier 是唯一一个指定容器对象ID 进行注入的手段、否则 Spring 皆为类型注入
@Qualifier 作用于指定注入的地方
Computer

package org.example.spring.service;

import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Component;

@Component
public record Computer(@Qualifier("usb3") Usb usb) {
}

04. 类型注入优点

类型注入不一定产生冲突、有冲突时解决一下即可
容器对象ID 总是需要声明注入容器对象ID、会增加开发者负担
使用容器对象、在逻辑上是关心其类型

3. 单例多例注入问题

=== 一般情况下容器可以根据一般逻辑按照对象单多例正确完成注入

01. 逻辑说明

依赖注入单多例依赖关系的四种逻辑情况如下
单例A -> 单例B
单例A -> 多例B [该情况 Spring 无法自动且正确完成]
多例A -> 单例B
多例A -> 多例B

官方说明
image-20240629123037023

02. 解决方式

=== @Lookup 注解的方法会通知 Spring 强制覆盖并完成自动注入

B.java

package org.example.spring.service;

import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;
import org.springframework.beans.factory.config.ConfigurableBeanFactory;

@Component
@Scope(ConfigurableBeanFactory.SCOPE_PROTOTYPE)
public class B {

}

A.java

package org.example.spring.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Lookup;
import org.springframework.stereotype.Component;

@Component
public class A {

    private B b;

    // 无法正确工作
    @Autowired
    public void setB(B b) {
        this.b = b;
    }

    public B getB() {
        return b;
    }

    // Spring 将覆盖该方法 每次从容器中取出 新的 B 的实例
    @Lookup
    public B getContainerPrototypeB() {
        return null;
    }

}

Application.java

package org.example.spring.api;

import org.example.spring.conf.SpringContextConfiguration;
import org.example.spring.service.A;
import org.example.spring.service.B;

import org.springframework.context.annotation.AnnotationConfigApplicationContext;


public class Application {
    public static void main(String[] args) {

        AnnotationConfigApplicationContext context =
            new AnnotationConfigApplicationContext(SpringContextConfiguration.class);


        A a1  = context.getBean(A.class);
        A a2  = context.getBean(A.class);

        B b11 = context.getBean(B.class);
        B b22 = context.getBean(B.class);

        System.out.println(a1 == a2);					// true  A 是单例

        System.out.println(b11 == b22);					// false B 是多例

        System.out.println(a1.getB() == a1.getB());		// true A 未完成B多例注入 B 是单例

        B b1 = a1.getContainerPrototypeB();
        B b2 = a1.getContainerPrototypeB();

        System.out.println(b1);			// toString 不同对象 hashcode 不同
        System.out.println(b2);			// toString 不同对象 hashcode 不同

        System.out.println(b1 == b2);	// false @Lookup 注解生效 b1 b2 是不同实例

        context.close();

    }
}

Console

true

false

true

org.example.spring.service.B@5f683daf

org.example.spring.service.B@78ffe6dc

false

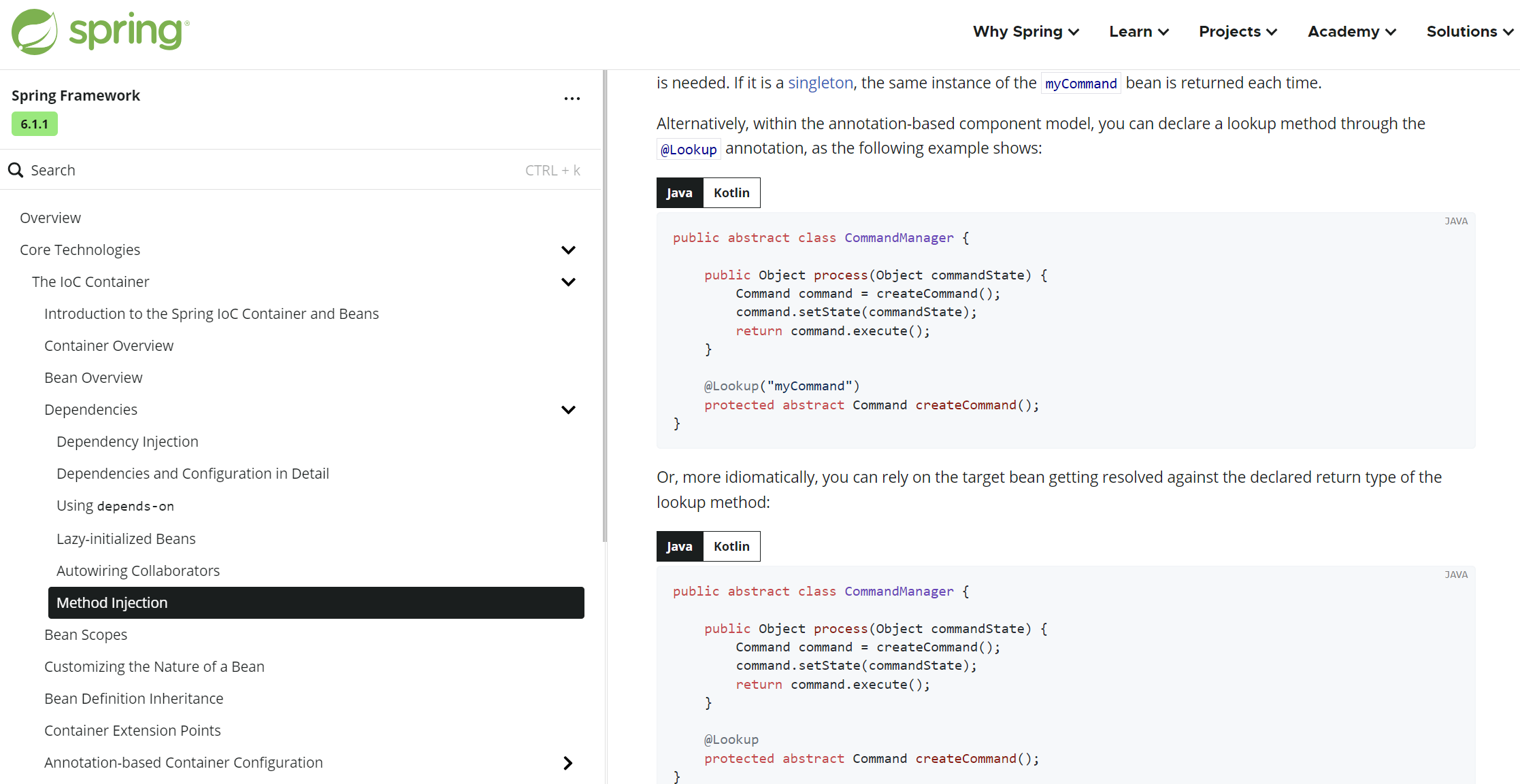

官网示例

4. 循环依赖

=== 循环依赖是指容器对象互相依赖注入的问题 [应当避免该设计]

01. 问题说明

循环依赖场景: record C(D d) {} / record D(C c) {}
C.java

package org.example.spring.service;

import org.springframework.stereotype.Component;

@Component
public class C {
    private D d;

    public C(D d) {
        this.d = d;
    }

    public D getD() {
        return d;
    }
}

D.java

package org.example.spring.service;

import org.springframework.stereotype.Component;

@Component
public class D {

    private C c;

    public D(C c) {
        this.c = c;
    }

    public String message() {
        return "D";
    }
}

Console 容器中获取 C | D 对象时 Spring 将抛出异常


警告: Exception encountered during context initialization - cancelling refresh attempt: org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name 'c' defined in file [D:\vite-project\spring-di\target\classes\org\example\spring\service\C.class]: Unsatisfied dependency expressed through constructor parameter 0: Error creating bean with name 'd' defined in file [D:\vite-project\spring-di\target\classes\org\example\spring\service\D.class]: Unsatisfied dependency expressed through constructor parameter 0: Error creating bean with name 'c':

Requested bean is currently in creation: Is there an unresolvable circular reference?

02. 解决方式

=== 循环依赖主要有两种解决方式 1. @Lazy 注解构造方法、2. 改为其它注入方式

当依赖注入方式为构造方法注入时使用 @Lazy 注解构造方法
将构造方法注入改为 Setter 方法注入 Spring 可正确完成

C.java

package org.example.spring.service;

import org.springframework.context.annotation.Lazy;
import org.springframework.stereotype.Component;

@Component
public class C {
    private D d;

    @Lazy
    public C(D d) {
        this.d = d;
    }

    public D getD() {
        return d;
    }
}

D.java

package org.example.spring.service;

import org.springframework.context.annotation.Lazy;
import org.springframework.stereotype.Component;

@Component
public class C {
    private D d;

    @Lazy
    public C(D d) {
        this.d = d;
    }

    public D getD() {
        return d;
    }
}

=== Setter 注入方式的逻辑是: 先创建容器对象再进行注入

C.java

package org.example.spring.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

@Component
public class C {
    private D d;

    @Autowired
    public void setD(D d) {
        this.d = d;
    }

    public D getD() {
        return d;
    }
}

D.java

package org.example.spring.service;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;

@Component
public class D {

    private C c;

    @Autowired
    public void setC(C c) {
        this.c = c;
    }

    public String message() {
        return "D";
    }
}
