SpringMVC

4529字约15分钟

SpringMVC 是 Spring 框架针对 Web 提供的技术支持模块、并不是独立的框架,专门针对WEB的功能

1. 机制说明

1.1 环境

spring-web 完成对 web 的抽象和基础实现
spring-webmvc 完成对 servlet-api 规范的封装

pom.xml

<!-- https://mvnrepository.com/artifact/org.springframework/spring-webmvc -->
<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>6.1.10</version>
</dependency>

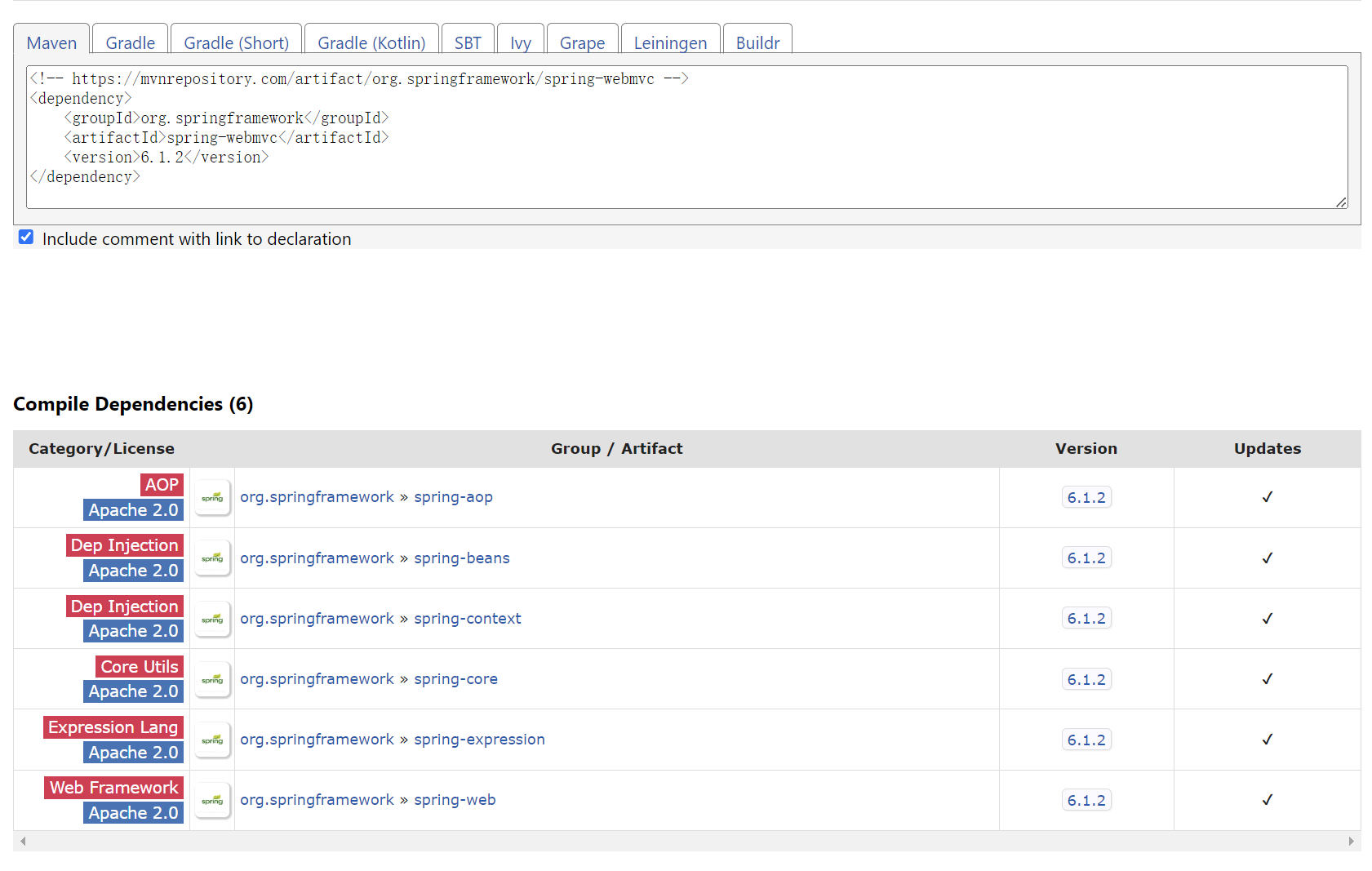

maven
image-20240712125039773

1.2 DispatcherServlet

DispatcherServlet 是 SpringMVC 抽象的 Servlet 实现

DispatcherServlet 通常 URL 配置为 /* 用于拦截整个项目中的请求
DispatcherServlet 拦截 URL 后、会将 URL 匹配 Controller 类中的 URL 注解方法
匹配 URL 方法完成后、SpringMVC 会提取 URL 中的参数、再对方法进行反射
并在解析 URL 参数过程中、预留了可插拔的参数校验手段
反射 URL 方法执行的过程中、预留了可插拔的拦截器手段、用于控制该执行过程
URL 方法执行拿到结果后、还会检查 URL 方法配置、再决定以什么方式返回给客户端
返回方式有视图页面跳转、请求转发、重定向、返回 JSON 数据等
在整个拦截 URL 执行的过程中被全局 try 捕获异常、异常还提供全局异常处理

1.3 启动逻辑

SpringServletContainerInitialize类用于监听容器启动，用于引导spring运行

SpringServletContainerInitializer 实现接口 ServletContainerInitializer
SpringServletContainerInitializer 注解 WebApplicationInitializer
AbstractAnnotationConfigDispatcherServletInitializer 实现 WebApplicationInitializer

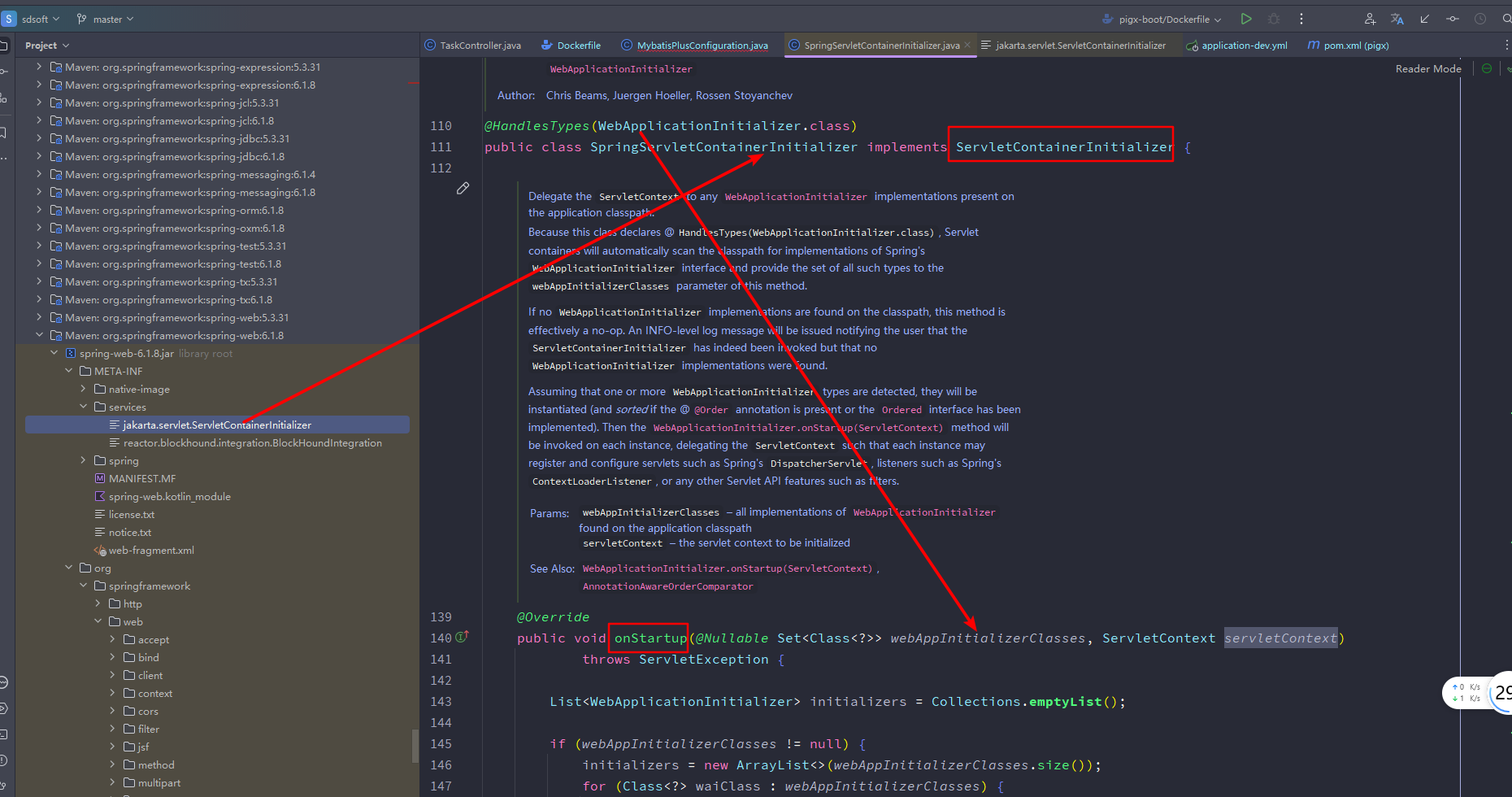

关键代码
image-20240712132153917

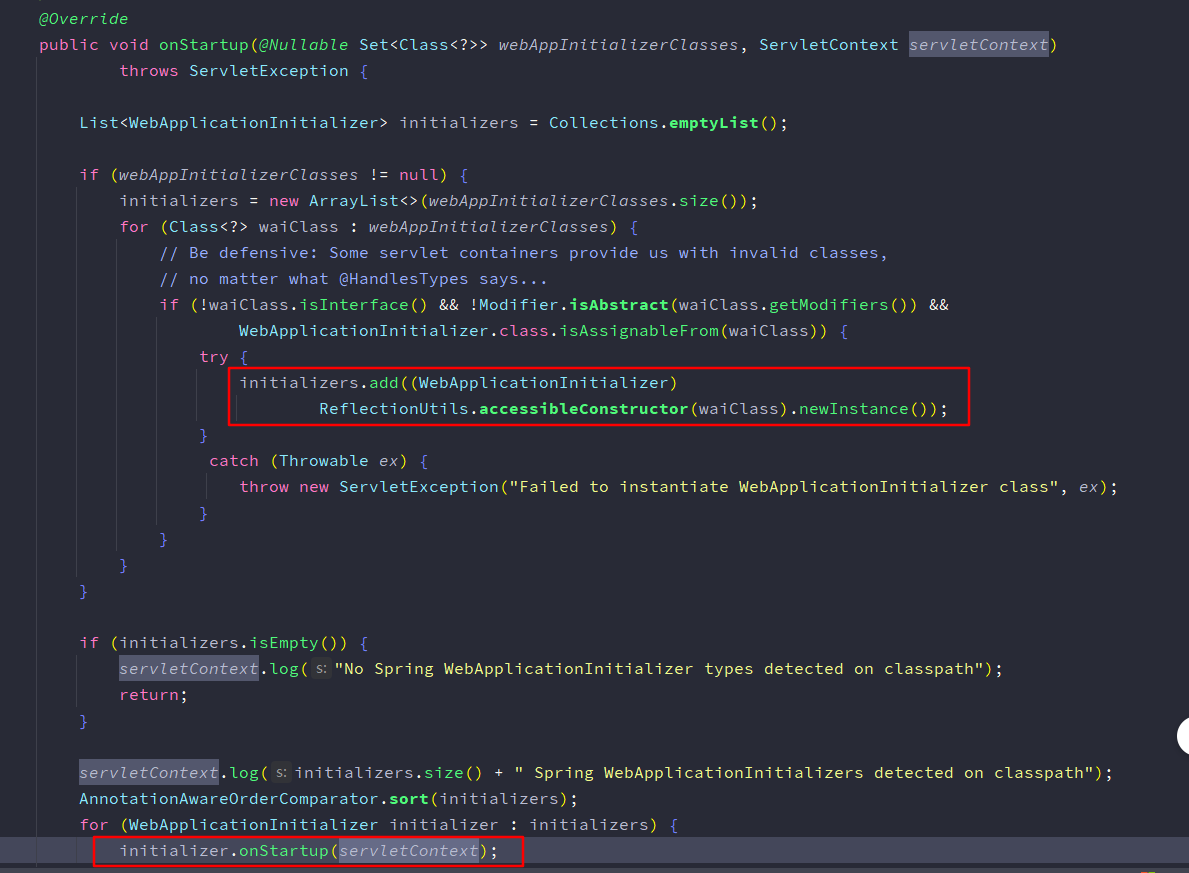

关键逻辑
image-20240712132235475

1.4 JSON

SpringMVC若配置URL方法返回值为JSON时，默认会使用Jackson

SpringMVC 是直接使用 Jackson 基础常用 Api、将 URL 方法返回值处理返回
一般不用过多考虑 SpringMVC & Jackson 版本对应问题

pom.xml

<dependency>
    <groupId>com.fasterxml.jackson.core</groupId>
    <artifactId>jackson-databind</artifactId>
    <version>2.16.1</version>
</dependency>

<!--        <dependency>-->
<!--            <groupId>com.fasterxml.jackson.core</groupId>-->
<!--            <artifactId>jackson-annotations</artifactId>-->
<!--            <version>2.16.1</version>-->
<!--        </dependency>-->

<!--        <dependency>-->
<!--            <groupId>com.fasterxml.jackson.core</groupId>-->
<!--            <artifactId>jackson-core</artifactId>-->
<!--            <version>2.16.1</version>-->
<!--        </dependency>-->

<!-- 选择 jackson 对 java8 time 类型支持 -->
<dependency>
    <groupId>com.fasterxml.jackson.datatype</groupId>
    <artifactId>jackson-datatype-jsr310</artifactId>
    <version>2.16.1</version>
</dependency>

<!-- 选择 jackson 对 java8 stream 等 类型支持 -->
<dependency>
    <groupId>com.fasterxml.jackson.datatype</groupId>
    <artifactId>jackson-datatype-jdk8</artifactId>
    <version>2.16.1</version>
</dependency>

<!-- 选择 jackson 对 类构造方法参数名 方法参数名 反射支持 -->
<dependency>
    <groupId>com.fasterxml.jackson.module</groupId>
    <artifactId>jackson-module-parameter-names</artifactId>
    <version>2.16.1</version>
</dependency>

2. Web上下文

SpringMVC将从DispatchServlet注册开始引导Spring上下文初始化

2.1 上下文关系

官网

2.2 上下文入口

AbstractAnnotationConfigDispatcherServletInitializer 提供三个方法

getRootConfigClasses 读取公共的 ROOT 上下文配置 [通常不需要]
getServletConfigClasses 从 DispatcherServlet 开始建立上下文
- 会得到 WebApplicationContext 上下文
  - 扫描到 @Service @Repository 组件时会形成子 Root 上下文
  - ROOT 上下文被 WebApplicationContext 隔离小黑屋逻辑
  - ROOT 不应获取 WebApplicationContext 上下文组件逻辑
  - WebApplicationContext 正常获取 ROOT 上下文组件逻辑
getServletMappings 为 DispatcherServlet 绑定 URL

AbstractAnnotationConfigDispatcherServletInitializer.java

public class XyzWebAppInitializer extends AbstractAnnotationConfigDispatcherServletInitializer {

	@Override
	protected Class<?>[] getRootConfigClasses() {
		return new Class<?>[] { RootConfig.class };
	}

	@Override
	protected Class<?>[] getServletConfigClasses() {
		return new Class<?>[] { App1Config.class };
	}

	@Override
	protected String[] getServletMappings() {
		return new String[] { "/*" };
	}

}

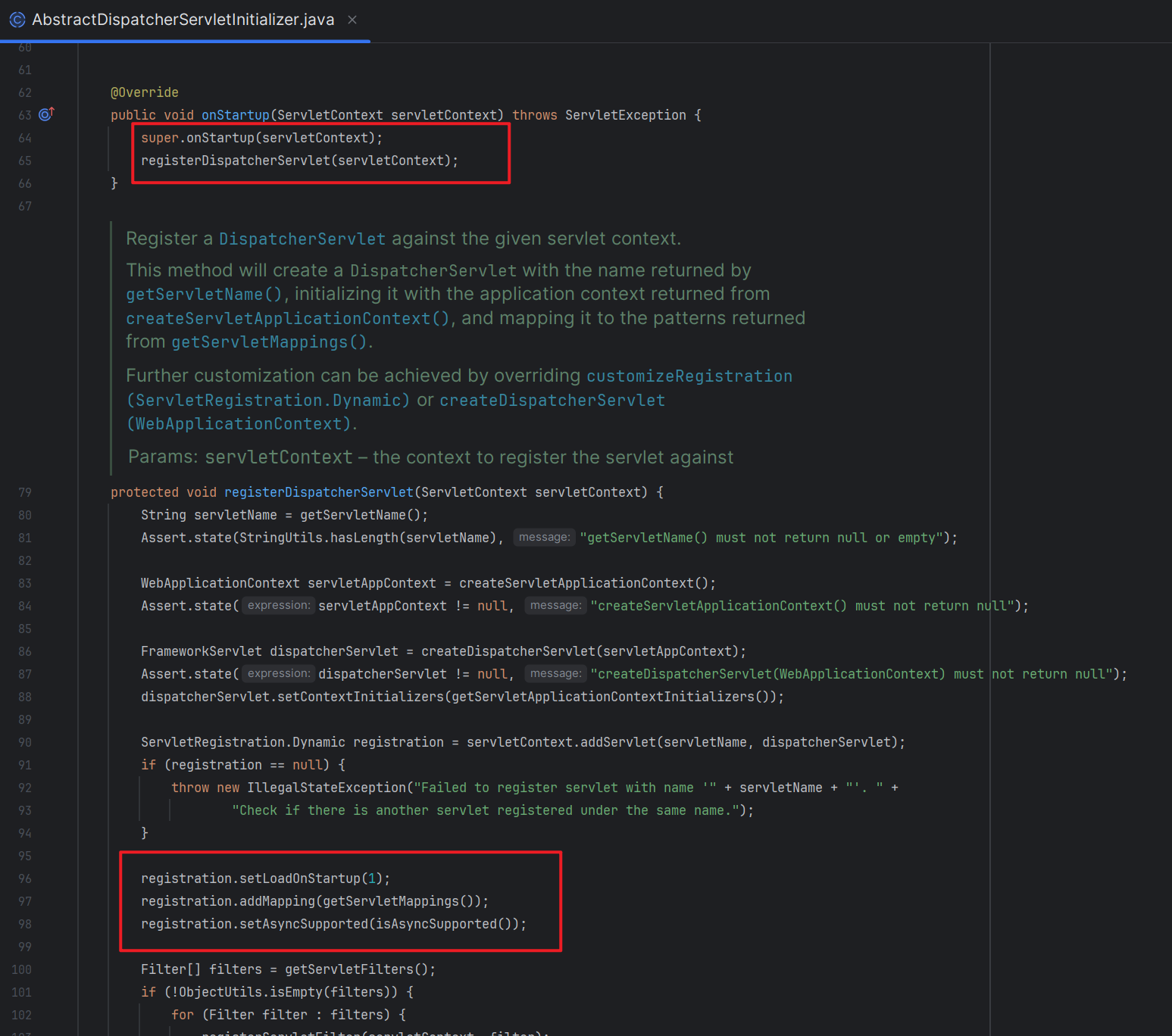

关键代码
image-20240712221643288

3. 整合

3.1 环境

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
                             https://maven.apache.org/xsd/maven-4.0.0.xsd">

    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>1.0-SNAPSHOT</version>
    <name>spring-webmvc</name>
    <packaging>war</packaging>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <maven.compiler.target>17</maven.compiler.target>
        <maven.compiler.source>17</maven.compiler.source>
        <junit.version>5.9.2</junit.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>jakarta.servlet</groupId>
            <artifactId>jakarta.servlet-api</artifactId>
            <version>6.0.0</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>6.1.2</version>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.16.1</version>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.datatype</groupId>
            <artifactId>jackson-datatype-jsr310</artifactId>
            <version>2.16.1</version>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.datatype</groupId>
            <artifactId>jackson-datatype-jdk8</artifactId>
            <version>2.16.1</version>
        </dependency>

        <dependency>
            <groupId>com.fasterxml.jackson.module</groupId>
            <artifactId>jackson-module-parameter-names</artifactId>
            <version>2.16.1</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-war-plugin</artifactId>
                <version>3.3.2</version>
            </plugin>
            <plugin>
                <groupId>org.codehaus.cargo</groupId>
                <artifactId>cargo-maven3-plugin</artifactId>
                <version>1.10.10</version>
                <configuration>
                    <container>
                        <containerId>tomcat10x</containerId>
                        <type>embedded</type>
                    </container>
                    <deployables>
                        <deployable>
                            <type>war</type>
                            <location>
                                ${project.build.directory}/${project.build.finalName}.war
                            </location>
                            <properties>
                                <context>/spring-webmvc</context>
                            </properties>
                        </deployable>
                    </deployables>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

3.2 配置

SystemConfigDispatcherServletInitializer.java

package com.example.mvc.conf;

import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;

public class SystemConfigDispatcherServletInitializer extends AbstractAnnotationConfigDispatcherServletInitializer {
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return null;
    }

    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[]{SpringWebContextConfiguration.class};
    }

    @Override
    protected String[] getServletMappings() {
        return new String[]{"/*"};
    }
}

SpringWebContextConfiguration.java

package com.example.mvc.conf;


import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;

@Configuration
@ComponentScan(basePackages = "com.example.mvc")

// 1. 识别 Web 相关注解
// 2. 为 DispatcherServlet 注册相关组件到容器中
@EnableWebMvc
public class SpringWebContextConfiguration {
}

UserController.java

package com.example.mvc.controller;


import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.Collections;
import java.util.Map;

// 只标识该类为响应约定类 返回类型由 视图解析器 或 方法上约定注解指定
// @Controller

// 标识该类为响应约定类 类中所有方法的返回值都转为 JSON 进行响应
@RestController
public class UserController {

    @GetMapping("/api/v1/anonymous/user/welcome")
    public Map<String, String> welcome() {
        return Collections.singletonMap("welcome", "springMVC");
    }

}

4. URL注解

SpringMVC主要提供以下注解用于绑定URL与方法的映射关系

@RequestMapping -- 类上为总 URL | 方法上为方法次 URL 默认接收 GET 请求
@GetMapping -- 只能在方法上只接收 GET 请求
@PostMapping -- 只能在方法上只接收 POST 请求
@XxxMapping -- 只能在方法上接收 PTU | DELETE 等对应请求

Usage

package com.example.mvc.controller;


import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

import java.util.Collections;
import java.util.Map;

@RestController
@RequestMapping("/api/v1/anonymous")
public class UrlController {

    // 127.0.0.1:8080/spring-webmvc/api/v1/anonymous/url1
    @RequestMapping(value = "/url1", method = RequestMethod.GET)
    public Map<String, String> url1() {
        return Collections.singletonMap("url", "url1");
    }

    // 127.0.0.1:8080/spring-webmvc/api/v1/anonymous/url2
    @GetMapping(value = "/url2")
    public Map<String, String> url2() {
        return Collections.singletonMap("url", "url2");
    }

    // 127.0.0.1:8080/spring-webmvc/api/v1/anonymous/url3
    @PostMapping(value = "/url3")
    public Map<String, String> url3() {
        return Collections.singletonMap("url", "url3");
    }

    // 127.0.0.1:8080/spring-webmvc/api/v1/anonymous
    @GetMapping
    public Map<String, String> url4() {
        return Collections.singletonMap("url", "url4");
    }
}

5. 参数处理

SpringMVC 将 URL 参数解析后可将其指定传递给当前对应 URL 方法的参数

SpringMVC 要求 URL 参数名称对应 URL 方法参数名称
SpringMVC 支持对参数进行基础格式化和自定义格式化 @DateTimeFormat 可格式日期时间
- 参数接收格式化和 URL 方法返回值格式化没半毛钱关系各是各
- 如参数日期格式化是 SpringMVC | 方法返回值对象中的日期是 Jackson API
SpringMVC 支持 @RequestParam("URL 参数名") 指定注入给注解参数变量
SpringMVC 支持以对象成员方式接收参数
SpringMVC 解析参数时可插拔参数校验、支持 Bean validation 规范
SpringMVC 默认只接收表单格式数据、如果参数是 JSON 必须使用 @RequestBody 注解方法参数

Usage

package com.example.mvc.controller;


import com.example.mvc.controller.request.RequestUserBody;
import org.springframework.format.annotation.DateTimeFormat;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.time.LocalDateTime;
import java.util.Map;

@RestController
@RequestMapping("/api/v1/anonymous/param")
public class ParamController {


    // 127.0.0.1:8080/spring-webmvc/api/v1/anonymous/param/url1?username=admin&gender=1&datetime=2024-01-02 16:29:48
    @GetMapping("/url1")
    public Map<String, Object> url1(String username,
                                    int gender,
                                    @DateTimeFormat(pattern = "yyyy-MM-dd HH:mm:ss")
                                    LocalDateTime datetime){
        return Map.of("username", username, "gender", gender, "datetime", datetime);
    }

    @GetMapping("/url2")
    public Map<String, Object> url2(RequestUserBody user){
        return Map.of("user", user);
    }

    // url json
    @GetMapping("/url3")
    public Map<String, Object> url3(@RequestBody RequestUserBody user){
        return Map.of("user", user);
    }

}

RequestUserBody.java

package com.example.mvc.controller.request;

import com.fasterxml.jackson.annotation.JsonFormat;
import lombok.Data;
import org.springframework.format.annotation.DateTimeFormat;

import java.time.LocalDateTime;

@Data
public class RequestUserBody {

    private String username;
    private int gender;

    @DateTimeFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    private LocalDateTime datetime;

}

6. 占位参数

占位参数是对restful风格URL的支持

url: get/user?username=admin | restful /get/user/admin
springmvc restful url: /get/user/
@PathVariable("占位参数名称")

PathVariableController.java

package com.example.mvc.controller;


import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.Map;

@RestController
@RequestMapping("/api/v1/anonymous/users")
public class PathVariableController {


    // GET 127.0.0.1:8080/spring-webmvc/api/v1/anonymous/users/admin
    @GetMapping("/{username}")
    public Map<String, Object> url(@PathVariable("username") String username){
        return Map.of("username", username);
    }

}

7. 统一视图

统一视图使得全站总是返回统一的数据结构，更有利于系统的维护

JsonHelper.java

package com.example.mvc.json;

import com.fasterxml.jackson.core.JsonProcessingException;
import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.datatype.jdk8.Jdk8Module;
import com.fasterxml.jackson.datatype.jsr310.JavaTimeModule;
import com.fasterxml.jackson.module.paramnames.ParameterNamesModule;
import jakarta.servlet.http.HttpServletResponse;

import java.io.IOException;
import java.io.PrintWriter;
import java.util.Objects;

public final class JsonHelper {
    private JsonHelper() {

    }

    public final static ObjectMapper OBJECT_MAPPER = new ObjectMapper();

    static {
        OBJECT_MAPPER
                .registerModule(new JavaTimeModule())
                .registerModule(new Jdk8Module())
                .registerModule(new ParameterNamesModule());
    }

    public static String toJSON(Object object) {
        Objects.requireNonNull(object);
        try {
            return OBJECT_MAPPER.writeValueAsString(object);
        } catch (JsonProcessingException e) {
            throw new RuntimeException(e);
        }
    }

    public static void responseToClient(HttpServletResponse response, Object object){
        response.setContentType("application/json");
        response.setCharacterEncoding("utf-8");
        try {
            PrintWriter writer = response.getWriter();
            writer.println(toJSON(object));
            writer.close();
        } catch (IOException e) {
            throw new RuntimeException(e);
        }
    }

}

JsonBody.java

package com.example.mvc.controller.view;

import com.example.mvc.json.JsonHelper;
import jakarta.servlet.http.HttpServletResponse;

import java.util.HashMap;
import java.util.Map;

public class JsonBody {

    // 状态码
    private int code;

    public void setCode(int code) {
        this.code = code;
    }

    public int getCode() {
        return code;
    }

    // 请求结果状态
    private boolean success;

    public void setSuccess(boolean success) {
        this.success = success;
    }

    public boolean isSuccess() {
        return success;
    }

    // 请求操作描述
    private String description;

    public void setDescription(String description) {
        this.description = description;
    }

    public String getDescription() {
        return description;
    }

    // 响应数据结构
    private Map<String, Object> context;

    public void setContext(Map<String, Object> context) {
        this.context = context;
    }

    public Map<String, Object> getContext() {
        return context;
    }

    private JsonBody(int code, boolean success, String description) {
        this.code = code;
        this.success = success;
        this.description = description;
    }

    private JsonBody() {
        this(0, false, "");
    }

    public static JsonBody success(int code, String description) {
        return new JsonBody(code, true, description);
    }

    public static JsonBody failed(int code, String description) {
        return new JsonBody(code, false, description);
    }

    public void toClient(HttpServletResponse response) {
        JsonHelper.responseToClient(response, this);
    }


    public JsonBody add(String key, Object value) {
        if (context == null) {
            context = new HashMap<>();
        }
        context.put(key, value);

        return this;
    }

}

8. 全局异常

全局异常是因为DispatcherServlet拦截了当此请求

对于一次 request 请求后续发生的所有异常都能被 DispatcherServlet 捕获
@ControllerAdvice -- 声明类为 Controller 对应异常处理类
@RestControllerAdvice -- 声明类为 Controller 对应异常处理类
@ExceptionHandler -- 处理具体异常

GlobalExceptionHandler.java

package com.example.mvc.exception;


import com.example.mvc.controller.view.JsonBody;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

@RestControllerAdvice
public class GlobalExceptionHandler {

    @ExceptionHandler(ArithmeticException.class)
    public JsonBody handleArithmeticException(ArithmeticException e){
        return JsonBody.failed(500, "出问题了").add("error", e.getMessage());
    }

    @ExceptionHandler(Exception.class)
    public JsonBody handleException(Exception e){
        return JsonBody.failed(500, "服务器打盹儿了...");
    }

}

api设计手段

package com.example.mvc.service;

import com.example.mvc.controller.UserController;
import com.example.mvc.exception.UsernameNotFoundException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class UserService {

    @Override
    public String toString() {
        return "UserService{}";
    }

    public void login(String username, String password) {
        if (username == null || password == null) {
            throw new UsernameNotFoundException("cause By : can not found username = " + username);
        }
    }

}

9. 数据校验

数据校验总是校验外部来源的数据

springMVC 提供内置校验手段 & 支持 Bean 校验规范
Spring 容器可配置 LocalValidatorFactoryBean 来指定校验接口
LocalValidatorFactoryBean 能够自动找到 Bean 规范实现
Bean Validation 支持对象 | 方法参数 | 分组等复杂校验请参考规范 [与spring无关]

9.1 环境

<dependency>
    <groupId>org.hibernate.validator</groupId>
    <artifactId>hibernate-validator</artifactId>
    <version>8.0.1.Final</version>
</dependency>

dependency

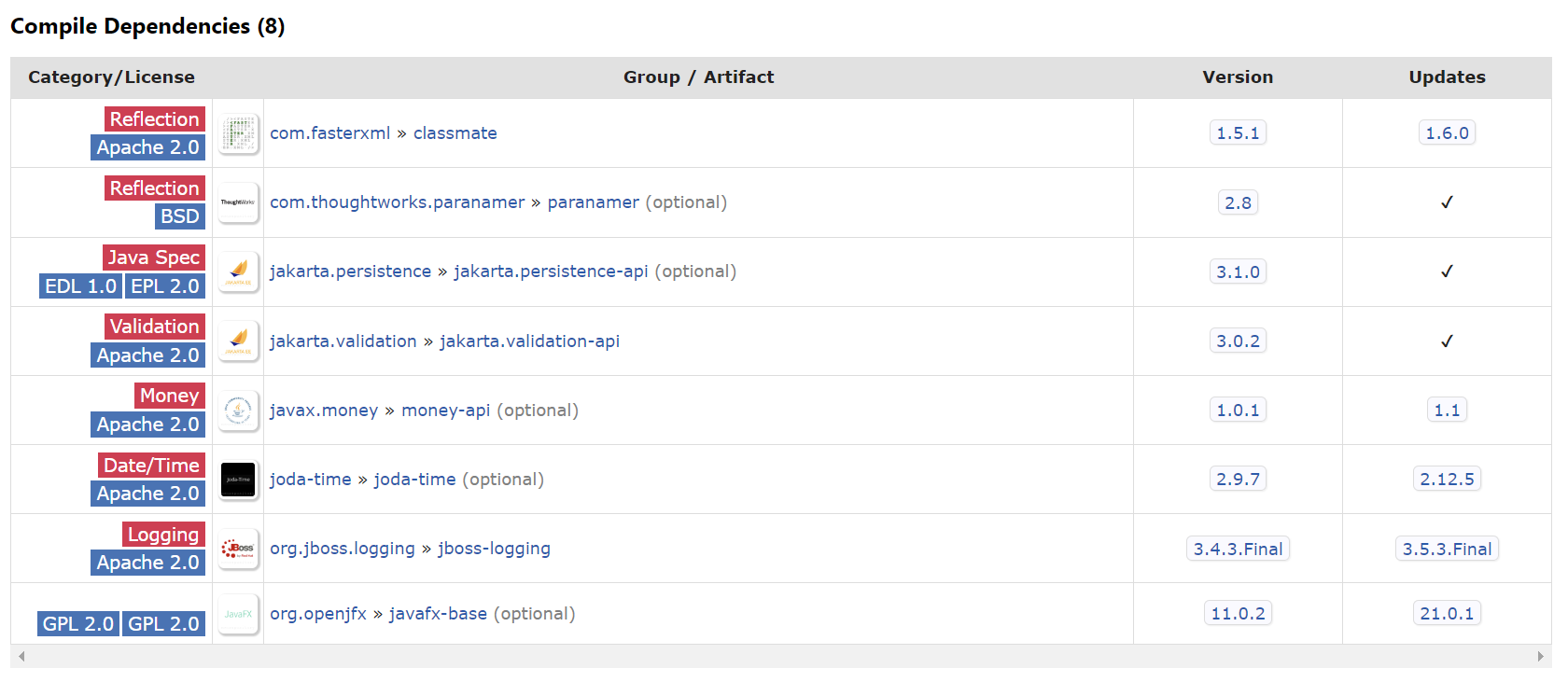

image-20240713233123312

9.2 配置

LocalValidatorFactoryBean

LocalValidatorFactoryBean.java

package com.example.mvc.conf;


import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.validation.beanvalidation.LocalValidatorFactoryBean;

@Configuration
public class HibernateValidatorConfiguration {

    @Bean
    public LocalValidatorFactoryBean validator() {
        return new LocalValidatorFactoryBean();
    }

}

9.3 运用

校验类

RequestUserBody.java

package com.example.mvc.controller.request;

import com.fasterxml.jackson.annotation.JsonFormat;

import jakarta.validation.constraints.Max;
import jakarta.validation.constraints.Min;
import jakarta.validation.constraints.NotNull;
import jakarta.validation.constraints.Pattern;

import lombok.Data;
import org.hibernate.validator.constraints.Length;
import org.springframework.format.annotation.DateTimeFormat;

import java.time.LocalDateTime;

@Data
public class RequestUserBody {

    @NotNull(message = "账号不能为空")
    @Length(min = 6, max = 12, message = "账号不符合格式")
    private String username;

    @Min(value = 0L, message = "性别不能小于0")
    @Max(value = 2L, message = "性别不能大于2")
    private int gender;

    @DateTimeFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    @JsonFormat(pattern = "yyyy-MM-dd HH:mm:ss")
    private LocalDateTime datetime;


    @NotNull(message = "手机号不能为空")
    @Pattern(regexp = "1[3456789]\\d{9}")
    private String phone;

}

UserController.java

package com.example.mvc.controller;


import com.example.mvc.controller.request.RequestUserBody;
import com.example.mvc.controller.view.JsonBody;
import com.example.mvc.service.UserService;
import org.springframework.validation.BindException;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

import java.time.LocalDateTime;
import java.time.format.DateTimeFormatter;
import java.util.Collections;
import java.util.Map;

@RestController
public record UserController(UserService userService) {

    // 如果写成这样 校验不通过会抛出异常
    @GetMapping("/api/v1/anonymous/user/login")
    public JsonBody validator(@Validated RequestUserBody user) {
        return JsonBody.success(200, "校验通过").add("user", user);
    }

    // 如过校验通过 bindException == null
    // 两个参数 不能交换顺序 如果校验不通过 bindException 不为空 线程不会断
    // @GetMapping("/api/v1/anonymous/user/login")
    // public JsonBody validator(@Validated RequestUserBody user, BindException bindException){
    //     return JsonBody.success(200, "校验通过").add("user", user);
    // }

}

GlobalExceptionHandler.java

package com.example.mvc.exception;


import com.example.mvc.controller.view.JsonBody;
import org.springframework.validation.BindException;
import org.springframework.validation.FieldError;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

import java.util.List;


@RestControllerAdvice
public class GlobalExceptionHandler {


    @ExceptionHandler(ArithmeticException.class)
    public JsonBody handleArithmeticException(ArithmeticException e){
        return JsonBody.failed(500, "出问题了").add("error", e.getMessage());
    }

    @ExceptionHandler(Exception.class)
    public JsonBody handleException(Exception e){
        return JsonBody.failed(500, "服务器打盹儿了...").add("error", e.getMessage());
    }


    @ExceptionHandler(BindException.class)
    public JsonBody handleBindException(BindException bindException){

        // boolean hasErrors = bindException.hasErrors();

        JsonBody body = JsonBody.failed(400, "参数数据格式不正确");

        List<FieldError> fieldErrors = bindException.getFieldErrors();
        for (FieldError fieldError : fieldErrors) {
            String field = fieldError.getField();
            String message = fieldError.getDefaultMessage();
            body.add(field, message);
        }

        return body;
    }

}

9.4 散参数校验

@Validated 需要注解在 Controller 类上 & 抛出规范异常 ConstraintViolationException

HibernateValidatorConfiguration.java

package com.example.mvc.conf;


import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.validation.beanvalidation.LocalValidatorFactoryBean;
import org.springframework.validation.beanvalidation.MethodValidationPostProcessor;

@Configuration
public class HibernateValidatorConfiguration {

    @Bean
    public LocalValidatorFactoryBean validator() {
        return new LocalValidatorFactoryBean();
    }

    @Bean
    public MethodValidationPostProcessor validationPostProcessor() {
        MethodValidationPostProcessor processor = new MethodValidationPostProcessor();

        // 将 ConstraintViolationException 转为 非法状态异常 没卵用 [拿不到校验信息]
        // processor.setAdaptConstraintViolations(true);
        return processor;
    }

}

UserController.java

package com.example.mvc.controller;

import com.example.mvc.controller.request.RequestUserBody;
import com.example.mvc.controller.view.JsonBody;
import com.example.mvc.service.UserService;
import jakarta.validation.constraints.Max;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;


@Validated
@RestController
public class UserController {

    private UserService userService;

    @Autowired
    public void setUserService(UserService userService) {
        this.userService = userService;
    }

    // 如果写成这样 校验不通过会抛出异常
    @GetMapping("/api/v1/anonymous/user/login")
    public JsonBody validator(@Validated RequestUserBody user) {
        return JsonBody.success(200, "校验通过").add("user", user);
    }

    @GetMapping("/api/v1/anonymous/user/login2")
    public JsonBody validator2(@Max(value = 180L, message = "宽度不能超过180px") int width,
                               @Max(value = 80L,  message = "高度不能超过80px")  int height) {
        return JsonBody.success(200, "校验通过")
                .add("width", width)
                .add("height", height);
    }
}

GlobalExceptionHandler.java

	package com.example.mvc.exception;


import com.example.mvc.controller.view.JsonBody;
import jakarta.validation.ConstraintViolation;
import jakarta.validation.ConstraintViolationException;
import jakarta.validation.Path;
import org.springframework.validation.BindException;
import org.springframework.validation.FieldError;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

import java.util.Iterator;
import java.util.List;
import java.util.Set;


@RestControllerAdvice
public class GlobalExceptionHandler {


    @ExceptionHandler(ArithmeticException.class)
    public JsonBody handleArithmeticException(ArithmeticException e) {
        return JsonBody.failed(500, "出问题了").add("error", e.getMessage());
    }

    @ExceptionHandler(Exception.class)
    public JsonBody handleException(Exception e) {
        return JsonBody.failed(500, "服务器打盹儿了...").add("error", e.getMessage());
    }

    // ConstraintViolationException
    @ExceptionHandler(ConstraintViolationException.class)
    public JsonBody handleConstraintViolationException(ConstraintViolationException cve) {

        JsonBody body = JsonBody.failed(400, "散参数校验不通过");
        Set<ConstraintViolation<?>> constraintViolations = cve.getConstraintViolations();
        for (ConstraintViolation<?> constraintViolation : constraintViolations) {
            Path path = constraintViolation.getPropertyPath();
            Path.Node last = null;
            Iterator<Path.Node> iterator = path.iterator();
            for (Path.Node node : path) {
                last = node;
            }
            String message = constraintViolation.getMessage();
            body.add(last.getName(), message);
        }

        return body;
    }


    @ExceptionHandler(BindException.class)
    public JsonBody handleBindException(BindException bindException) {

        // boolean hasErrors = bindException.hasErrors();

        JsonBody body = JsonBody.failed(400, "参数数据格式不正确");

        List<FieldError> fieldErrors = bindException.getFieldErrors();
        for (FieldError fieldError : fieldErrors) {
            String field = fieldError.getField();
            String message = fieldError.getDefaultMessage();
            body.add(field, message);
        }

        return body;
    }

}

9.5 自定义注解校验

自定义注解校验是属于规范技术、和 spring 无关

Person.java

package com.example.mvc.entity;

import com.example.mvc.validation.GenderValidation;
import jakarta.validation.constraints.NotNull;
import lombok.Data;

@Data
public class Person {

    @NotNull(message = "姓名不能为空")
    private String name;

    @NotNull(message = "性别不能为空")
    // @Pattern(regexp = "man|woman")
    @GenderValidation(message = "性别必须符合 [man | woman]")
    private String gender; // [man, woman]

}

PersonController.java

package com.example.mvc.controller;


import com.example.mvc.entity.Person;
import com.example.mvc.controller.view.JsonBody;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("/api/v1/anonymous/person")
public class PersonController {

    @GetMapping
    public JsonBody person(@Validated Person person) {
        return JsonBody.success(200, "person").add("person", person);
    }

}

GenderValidation.java 【自定义注解】

package com.example.mvc.validation;


import jakarta.validation.Constraint;
import jakarta.validation.Payload;

import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;

@Target({ElementType.FIELD, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Constraint(validatedBy = GenderValidator.class)
public @interface GenderValidation {

    String message() default "";

    Class<?>[] groups() default {};

    Class<? extends Payload>[] payload() default {};

}

GenderValidator.java

package com.example.mvc.validation;

import com.example.mvc.entity.Gender;
import jakarta.validation.ConstraintValidator;
import jakarta.validation.ConstraintValidatorContext;

public class GenderValidator implements ConstraintValidator<GenderValidation, String> {
    @Override
    public boolean isValid(String genderValue,
                           ConstraintValidatorContext constraintValidatorContext) {


        for (Gender gender : Gender.values()){
            if (gender.name().equalsIgnoreCase(genderValue)) {
                return true;
            }
        }

        return false;
    }

    // private GenderValidation genderValidation;
    //
    // @Override
    // public void initialize(GenderValidation constraintAnnotation) {
    //     this.genderValidation = genderValidation;
    // }
}

Gender.java

package com.example.mvc.entity;

public enum Gender {
    MAN, WOMAN;
}

10. Easy-Captcha

Easy-Captcha 是用于生成验证码图片的 API、与 Servlet API 无关

pom.xml

<dependency>
    <groupId>com.github.whvcse</groupId>
    <artifactId>easy-captcha</artifactId>
    <version>1.6.2</version>
</dependency>

http response header

response.setContentType("image/gif");
response.setHeader("Pragma", "No-cache");
response.setHeader("Cache-Control", "no-cache");
response.setDateHeader("Expires", 0);

CaptchaController.java

package com.example.mvc.controller;


import com.wf.captcha.ChineseCaptcha;
import jakarta.servlet.http.HttpServletResponse;
import jakarta.servlet.http.HttpSession;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.io.IOException;

@RestController
@RequestMapping("/api/v1/anonymous/captcha")
public class CaptchaController {

    // 参数校验
    @GetMapping
    public void captcha(int width,
                        int height,
                        HttpServletResponse response,
                        HttpSession session) {

        response.setContentType("image/gif");
        response.setHeader("Pragma", "No-cache");
        response.setHeader("Cache-Control", "no-cache");
        response.setDateHeader("Expires", 0);

        ChineseCaptcha chineseCaptcha = new ChineseCaptcha(width, height, 4);

        String text = chineseCaptcha.text();

        System.out.println("text============================= " + text);

        session.setAttribute("code", text);

        try {
            chineseCaptcha.out(response.getOutputStream());
        } catch (IOException e) {
            throw new RuntimeException(e);
        }

    }

}

CaptchaController.java 前后端分离

@GetMapping
public JsonBody captcha(int width, int height) {

    ChineseCaptcha chineseCaptcha = new ChineseCaptcha(width, height, 4);

    String text = chineseCaptcha.text();

    String clientId = UUID.randomUUID().toString();

    System.out.println("存储 text = " + text);
    System.out.println("存储 clientId = " + clientId);


    return JsonBody.success(200, "验证码")
                   .add("clientId", clientId)
                   .add("codeUrl", chineseCaptcha.toBase64());

}

11. Filter

Filter 是 JAVA WEB 三大组件之一、执行优先级比 SpringMVC 高 [若是拦截到]
尽量避免在 SpringMVC 环境去使用 Filter、可使用 SpringMVC 拦截实现相同功能

11.1 注册方式

Filter 相比 Servlet 有**四种**注册方式 web.xml | 注解 | API | 指定注册到 Servlet

web.xml

<filter>
    <filter-name>filterName</filter-name>
    <filter-class>x.y.z.filterName</filter-class>
</filter>

<filter-mapping>
    <filter-name>filterName</filter-name>
    <url-pattern>/*</url-pattern>
</filter-mapping>

@WebFilter

package com.example.mvc.filter;

import jakarta.servlet.FilterChain;
import jakarta.servlet.ServletException;
import jakarta.servlet.annotation.WebFilter;
import jakarta.servlet.http.HttpFilter;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;

import java.io.IOException;

@WebFilter("/*")
public class CustomFilter extends HttpFilter {

    @Override
    protected void doFilter(HttpServletRequest request,
                            HttpServletResponse response,
                            FilterChain chain) throws IOException, ServletException {

        super.doFilter(request, response, chain);
    }
}

api

ServletContext servletContext = request.getServletContext();
        FilterRegistration.Dynamic registration =
            servletContext.addFilter("filterName", "x.y.z.FilterName");

        registration.addMappingForUrlPatterns(拦截请求类型, true, "url");

api [拦截指定名称的某个或多个 servlet]

ServletContext servletContext = request.getServletContext();
        FilterRegistration.Dynamic registration =
            servletContext.addFilter("filterName", "x.y.z.FilterName");

registration.addMappingForServletNames(拦截请求类型, true, "指定拦截的servlet名称");

11.2 自定义注册

业务指定 Filter 自行注册即可 | SpringMVC 提供的 Filter [编码|跨域]

CustomFilter.java [自定义推荐]

package com.example.mvc.filter;

import jakarta.servlet.FilterChain;
import jakarta.servlet.FilterRegistration;
import jakarta.servlet.ServletException;
import jakarta.servlet.annotation.WebFilter;
import jakarta.servlet.http.HttpFilter;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;

import java.io.IOException;

@WebFilter("/*")
public class CustomFilter extends HttpFilter {

    @Override
    protected void doFilter(HttpServletRequest request,
                            HttpServletResponse response,
                            FilterChain chain) throws IOException, ServletException {

        System.out.println("do something...");

        super.doFilter(request, response, chain);
    }
}

SystemConfigDispatcherServletInitializer.java [springMVC 提供]

package com.example.mvc.conf;

import jakarta.servlet.Filter;
import jakarta.servlet.ServletRegistration;
import org.springframework.web.filter.CharacterEncodingFilter;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;

public class SystemConfigDispatcherServletInitializer extends AbstractAnnotationConfigDispatcherServletInitializer implements WebMvcConfigurer {
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return null;
    }

    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[]{SpringWebContextConfiguration.class};
    }

    @Override
    protected String[] getServletMappings() {
        return new String[]{"/*"};
    }


    @Override
    protected Filter[] getServletFilters() {
        return new Filter[]{new CharacterEncodingFilter("UTF-8", true, true)};
    }
}

不好使 spring 不会认为什么什么然后帮你注册给 servlet 容器

@Bean
public CustomFilter customFilter() {
    System.out.println("======================================++");
    return new CustomFilter();
}

12. 拦截器

SpringMVC拦截器是 DispatcherServlet 执行过程中的拦截机制，不是Filter

12.1 机制

HandlerInterceptor -- 接口：用于实现拦截功能
- preHandle -- URL方法执行之前【前置拦截】
- postHandle -- URL方法反射执行之后，但未取得返回值做响应
- afterCompletion -- 响应结束之后
Interceptor允许拦截指定URL、同时也可以指定排除URL，相比Filter更好用
Interceptor 只允许拦截 Controller URL
开发者尽量避免使用过多拦截器导致 DispatcherServlet 执行过程过于复杂
不要让拦截器有交叉逻辑、若是有交叉逻辑、请合并拦截器设计

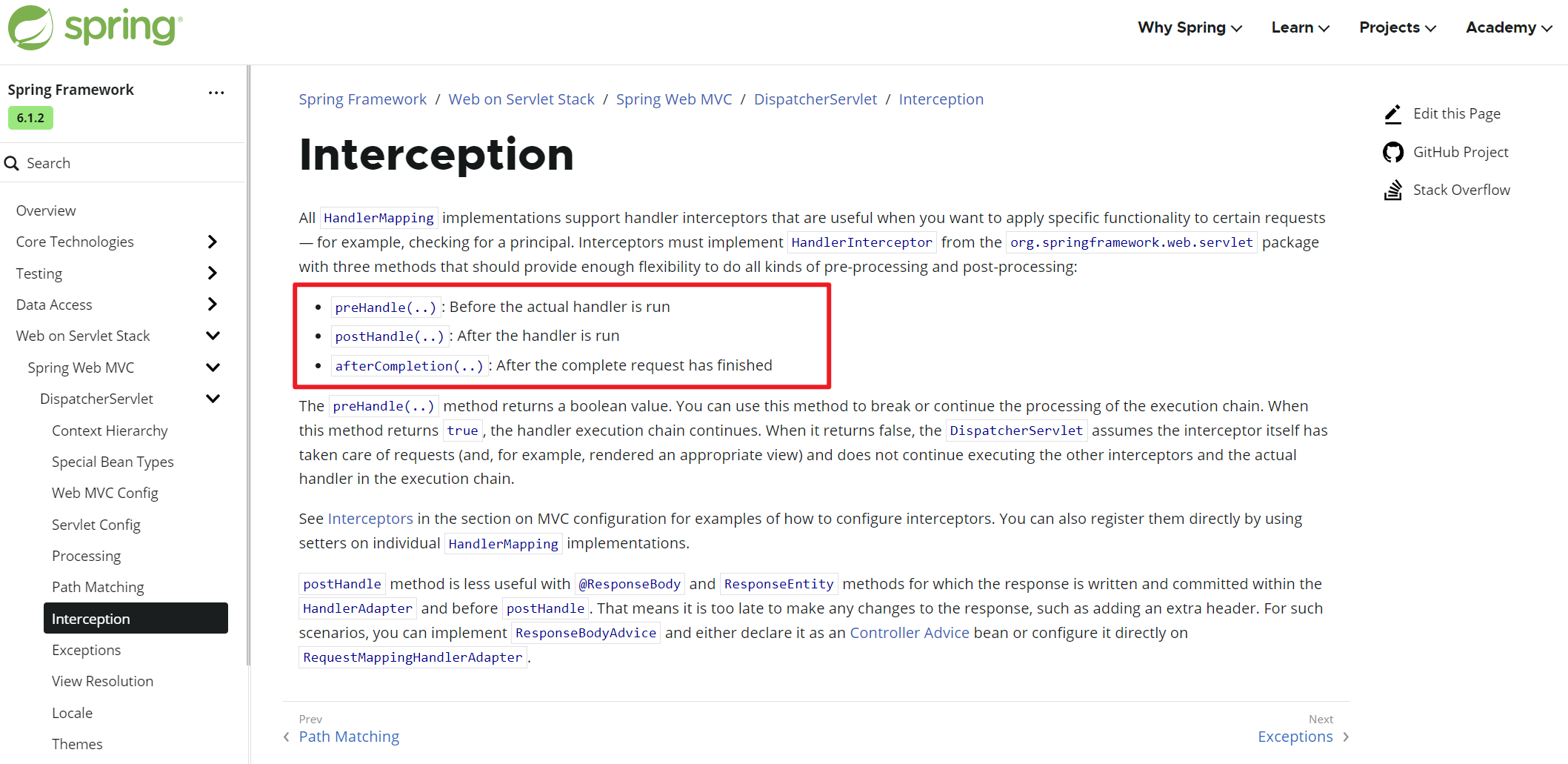

官网
image-20240714093103109

13. 文件上传和下载

springMVC 提供 HTTP 协议处理相关的类封装、同时提供文件下载上传的支持

org.springframework.http.HttpHeaders 响应头
org.springframeword.http.MediaType HTTP mine 类型
springMVC 文件下载可直接使用 servlet-api、或者 ResponseEntity 类
springMVC 文件上传可直接使用 servlet-api、或者 MultipartFile 类型接收文件

13.1 文件下载

FileDownloadController.java

package com.example.spring.controller;


import jakarta.servlet.ServletOutputStream;
import jakarta.servlet.http.HttpServletResponse;
import org.springframework.http.HttpHeaders;
import org.springframework.http.HttpStatus;
import org.springframework.http.MediaType;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.io.IOException;
import java.net.URLEncoder;
import java.nio.charset.StandardCharsets;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import java.util.UUID;

@RestController
@RequestMapping("/api/v1/anonymous/file")
public class FileDownloadController {

    @GetMapping("/download1")
    public void downloadByServerApi1(HttpServletResponse response)
        throws IOException {
        // response.setContentType(MediaType.APPLICATION_OCTET_STREAM_VALUE);

        Path path = Paths.get("e:\\新建文本文档.txt");

        String filename = UUID.randomUUID().toString() + ".txt";

        String encode = URLEncoder.encode(filename, StandardCharsets.UTF_8);

        byte[] bytes = Files.readAllBytes(path);

        response.setContentType("application/octet-stream");
        response.setHeader("Content-Disposition", "attachment;filename=" + encode);

        ServletOutputStream out = response.getOutputStream();
        out.write(bytes);

    }

    @GetMapping("/download2")
    public ResponseEntity<byte[]> downloadByServerApi2() throws IOException {

        Path path = Paths.get("e:\\新建文本文档.txt");
        String filename = UUID.randomUUID().toString() + ".txt";
        String encode = URLEncoder.encode(filename, StandardCharsets.UTF_8);
        byte[] bytes = Files.readAllBytes(path);

        HttpHeaders httpHeaders = new HttpHeaders();
        httpHeaders.add(HttpHeaders.CONTENT_TYPE, MediaType.APPLICATION_OCTET_STREAM_VALUE);
        httpHeaders.add(HttpHeaders.CONTENT_DISPOSITION, "attachment;filename=" + encode);

        return new ResponseEntity<>(bytes, httpHeaders, HttpStatus.OK);
    }

}

MultipartConfig.java

package com.example.spring.servlet;

import jakarta.servlet.annotation.MultipartConfig;
import jakarta.servlet.annotation.WebServlet;
import jakarta.servlet.http.HttpServlet;

@WebServlet(urlPatterns = "/name")
@MultipartConfig(
        location = "",
        fileSizeThreshold = 0,
        maxFileSize = 2 * 1024 * 1024,
        maxRequestSize = 4 * 1024 * 1024
)
public class NameServlet extends HttpServlet {

}

Api

package com.example.spring.servlet;

import jakarta.servlet.MultipartConfigElement;
import jakarta.servlet.ServletContext;
import jakarta.servlet.ServletException;
import jakarta.servlet.ServletRegistration;
import jakarta.servlet.annotation.MultipartConfig;
import jakarta.servlet.http.HttpServlet;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;

import java.io.IOException;

public class NameServlet extends HttpServlet {

    @Override
    protected void doGet(HttpServletRequest request, HttpServletResponse response)
        throws ServletException, IOException {

        ServletContext servletContext = request.getServletContext();

        ServletRegistration.Dynamic dynamic =
                servletContext.addServlet("nameServlet", new NameServlet());

        dynamic.addMapping("/*");

        MultipartConfigElement multipartConfigElement =
                new MultipartConfigElement("", 2 * 1024, 2 * 1024, 0);

        dynamic.setMultipartConfig(multipartConfigElement);
    }
}

DispatcherServlet 文件上传配置

package com.example.spring.conf;

import jakarta.servlet.MultipartConfigElement;
import jakarta.servlet.ServletRegistration;
import org.springframework.http.ResponseEntity;
import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;

public class SpringWebContextInitializer
    extends AbstractAnnotationConfigDispatcherServletInitializer {

    @Override
    protected Class<?>[] getRootConfigClasses() {
        return null;
    }

    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class<?>[]{SpringContextConfiguration.class};
    }

    @Override
    protected String[] getServletMappings() {
        return new String[]{"/*"};
    }

    @Override
    protected void customizeRegistration(ServletRegistration.Dynamic registration) {

        var multipartConfigElement =
                new MultipartConfigElement("", 2 * 1024 * 1024, 2 * 1024 * 1024, 0);

        registration.setMultipartConfig(multipartConfigElement);
    }
}

SpringMVC 处理静态资源有两种方式: DispatcherServlet 处理 | 交由 DefaultServlet

配置静态资源处理

WebMvcConfigurer.java

@Override
public void addResourceHandlers(ResourceHandlerRegistry registry) {
    registry.addResourceHandler("/resources/**")
            .addResourceLocations("/public", "/static");
}

// @Override
// public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
//     configurer.enable();
//     configurer.enable("default");
// }

FileUploadController.java

package com.example.spring.controller;


import jakarta.servlet.ServletException;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.Part;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.multipart.MultipartFile;

import java.io.IOException;
import java.io.InputStream;
import java.nio.file.Files;
import java.nio.file.Paths;

@RestController
@RequestMapping("/api/v1/anonymous/file")
public class FileUploadController {

    @PostMapping("/upload1")
    public void uploadByServletApi(HttpServletRequest request)
        throws ServletException, IOException {

        Part part = request.getPart("upload");

        String fileName = part.getSubmittedFileName();
        System.out.println("fileName = " + fileName);

        System.out.println("part.getContentType() = " + part.getContentType());

        InputStream in = part.getInputStream();
        byte[] bytes = new byte[in.available()];
        in.read(bytes);

        Files.write(Paths.get("e:\\" + fileName), bytes);

        System.out.println("上传成功...");

    }

    @PostMapping("/upload2")
    public void uploadBySpringMvcApi(@RequestParam("upload")
                                     MultipartFile multipartFile) throws IOException {

        String contentType = multipartFile.getContentType();
        System.out.println("contentType = " + contentType);

        String originalFilename = multipartFile.getOriginalFilename();
        System.out.println("originalFilename = " + originalFilename);

        byte[] bytes = multipartFile.getBytes();


    }

}
