SpringBoot中通用附件的设计
该附件设计可以做到业务附件不依赖于业务的数据库，将业务数据库和附件信息隔离开，可以在每个需要保存附件的业务上打上注解，对注解的业务方法进行拦截，用以保存附件信息
缺点：
- 业务数据存储和附件存储是分离开的，还无法联动回滚。
- controller层放在的common中有点不符合开发规范。（规矩是死的，但是人是活的）
1. 数据库设计
DROP TABLE IF EXISTS sys_attachment;
CREATE TABLE sys_attachment (
id VARCHAR(64) NOT NULL COMMENT '主键',
file_name VARCHAR(100) NOT NULL COMMENT '附件名称',
origin_file_name VARCHAR(50) NOT NULL COMMENT '源文件名称',
file_suffix VARCHAR(10) NOT NULL COMMENT '文件扩展名 不带.',
file_size_kb INT DEFAULT NULL COMMENT '文件所占存储的大小，单位KB',
fileUrl VARCHAR(100) NOT NULL COMMENT '存储的文件路径',
file_type VARCHAR(40) DEFAULT NULL COMMENT '文件分类',
link_id VARCHAR(64) NOT NULL COMMENT '关联业务id',
delete_flag BIT(1) NOT NULL DEFAULT b'0' COMMENT '是否删除(0：未删除 1：删除)',
create_by VARCHAR(64) DEFAULT NULL COMMENT '创建者',
create_time DATETIME DEFAULT NULL COMMENT '创建时间',
update_user VARCHAR(64) DEFAULT NULL COMMENT '更新者',
update_time DATETIME DEFAULT NULL COMMENT '更新时间',
PRIMARY KEY (id)
) COMMENT = '附件信息';2. 后端设计

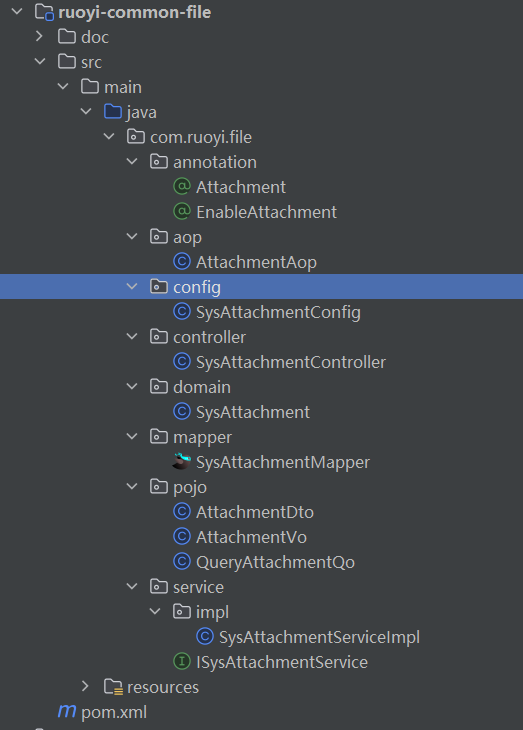

目录结构如下：

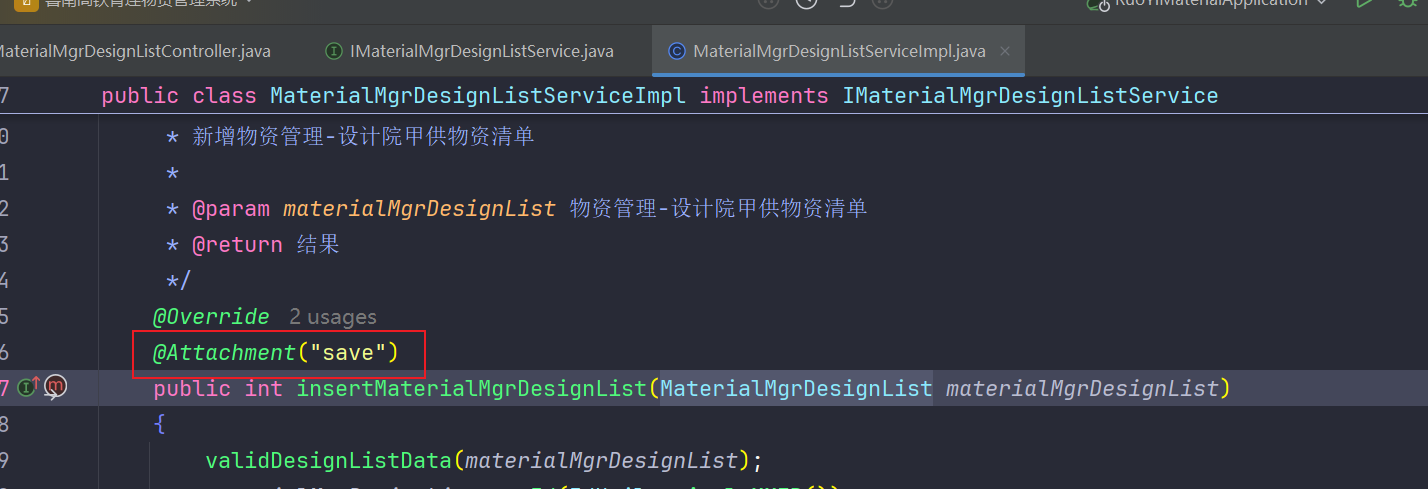

2.1 @Attachment用以放在需要附件的业务方法上
package com.ruoyi.file.annotation;
import org.springframework.stereotype.Component;
import java.lang.annotation.*;
/**
* 附件注解,用于设置是否保存附件，用于service方法上
* @author congpeitong
* @date 2024-12-04 18:36:25
*/
@Inherited
@Documented
@Component
@Target(ElementType.METHOD) // 用在方法上
@Retention(RetentionPolicy.RUNTIME) // 保留至运行期
public @interface Attachment {
// 保存:save / 编辑:update 类型区分 新建时 附件为空则不保存，编辑时附件为空则判断上一次是否有附件，有则删除，无则不处理
String value();
// 指定 id 字段名 默认为 id
String idField() default "id" ;
// 指定文件字段 字段名 默认为 files
String fileField() default "files" ;
// 包含附件数组的参数名称，如果不提供，则以第一个参数为准
String filesParamName() default "";

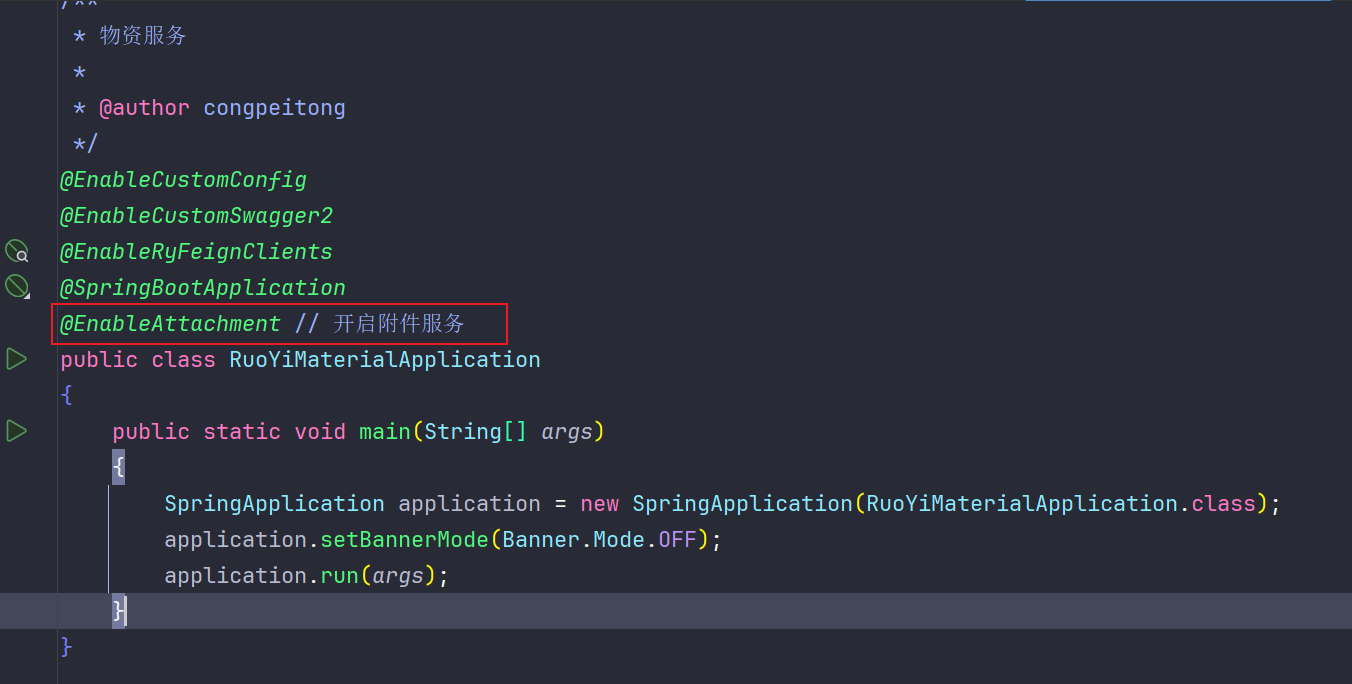

}2.2 @EnableAttachment 用于开启附件保存，通常用于SpringBoot的启动类上
package com.ruoyi.file.annotation;
import com.ruoyi.file.aop.AttachmentAop;
import com.ruoyi.file.config.SysAttachmentConfig;
import com.ruoyi.file.controller.SysAttachmentController;
import org.springframework.context.annotation.Import;
import java.lang.annotation.*;
/**
* 开启附件服务 注解
* @author congpeitong
* @date 2024-12-04 15:36:39
*/
@Documented
@Inherited
@Target(ElementType.TYPE) // 用在类上
@Retention(RetentionPolicy.RUNTIME) // 保留至运行期
@Import({SysAttachmentConfig.class, SysAttachmentController.class, AttachmentAop.class})
public @interface EnableAttachment {
}2.3 附件保存拦截
package com.ruoyi.file.aop;
import cn.hutool.core.util.ReflectUtil;
import com.ruoyi.file.annotation.Attachment;
import com.ruoyi.file.domain.SysAttachment;
import com.ruoyi.file.service.ISysAttachmentService;
import lombok.extern.slf4j.Slf4j;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.reflect.MethodSignature;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;
/**
* @Author congpeitong
* @Date 2024/4/19 14:51
*/
@Aspect
@Slf4j
@Component
public class AttachmentAop {
@Autowired
private ISysAttachmentService sysAttachmentService;
/**
* 注解@Attachment方法的拦截
* @author congpeitong
* @date 2024-12-05 08:30:07
* @param point 切入点 及执行的方法（注解标注的方法）
* @param attachment attachment 注解参数
* @return java.lang.Object
*/
@Around("@annotation(attachment)")
public Object around(ProceedingJoinPoint point, Attachment attachment) throws Throwable {
// 执行目标方法（即@Attachment注解标注的方法）
Object result = point.proceed();
// 获取参数列表
Object[] args = point.getArgs();
//没有参数即也没有附件，直接跳出
if(args.length==0){
return result;
}
try {
Object includeFilesParam = null;
//如果注解未设置方法中包含附件列表的参数名，则取第一个参数
String filesParamName = attachment.filesParamName();
if (filesParamName == null || filesParamName.isEmpty()) {
includeFilesParam = args[0];
}
//设置过参数名
if (includeFilesParam == null && filesParamName != null && !filesParamName.isEmpty()) {
// 参数名列表 获取目标方法上的注解 MethodSignature methodSignature = (MethodSignature) point.getSignature();
List<String> argNames = Arrays.asList(((MethodSignature) point.getSignature()).getParameterNames());
// argNames args 一一对应
includeFilesParam = args[argNames.indexOf(filesParamName)];
}
//未取到参数对象
if (includeFilesParam == null) {
return result;
}
Object fieldValueTmp = null;//临时对象
String bizId = "";//业务id
List<SysAttachment> files = new ArrayList<>();
fieldValueTmp = ReflectUtil.getFieldValue(includeFilesParam, attachment.idField());
if (fieldValueTmp == null) {
throw new RuntimeException("附件关联Id无效");
}
bizId = fieldValueTmp.toString();
if (!StringUtils.hasLength(bizId)) {
throw new IllegalArgumentException("参数错误，业务id未找到");
}
//文件列表整理
fieldValueTmp = ReflectUtil.getFieldValue(includeFilesParam, attachment.fileField());
if (fieldValueTmp == null) {
return result; //文件列表属性不存在，不予保存
}
if (!(fieldValueTmp instanceof List)) {
throw new RuntimeException("附件列表格式无效");
}
List<List<?>> tempFileList = (List<List<?>>) fieldValueTmp;
for (List<?> fileList : tempFileList) {
if(fileList!=null) {
List<SysAttachment> filesTmp = (List<SysAttachment>) fileList;
files.addAll(filesTmp);
}
}
//保存附件
if (("save".equals(attachment.value()) && files.size() != 0) || "update".equals(attachment.value())) {
sysAttachmentService.saveOrUpdateAttachment(bizId,files);
}
} catch (Exception e) {
// 捕获其他潜在异常，进行相应处理。
e.printStackTrace();
throw e;
}
return result;
}
}2.4 附件配置类
package com.ruoyi.file.config;
import com.ruoyi.file.service.ISysAttachmentService;
import com.ruoyi.file.service.impl.SysAttachmentServiceImpl;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
/**
* 附件配置类，配置 附件的保存/修改和查询
* @author congpeitong
* @date 2024-12-04 15:30:48
*/
@Configuration
@MapperScan(basePackages = "com.ruoyi.file.mapper") // 用于可扫描到附件的mapper文件
public class SysAttachmentConfig {
/**
* 注入附件服务
* @author congpeitong
* @date 2024-12-04 17:42:43
*/
@Bean
public ISysAttachmentService sysAttachmentService() {
return new SysAttachmentServiceImpl();
}
}2.5 controller
package com.ruoyi.file.controller;
import com.ruoyi.common.core.domain.R;
import com.ruoyi.file.pojo.AttachmentVo;
import com.ruoyi.file.pojo.QueryAttachmentQo;
import com.ruoyi.file.service.ISysAttachmentService;
import org.springframework.util.StringUtils;
import org.springframework.web.bind.annotation.*;
import java.util.List;
/**
* 附件服务控制器
* @author congpeitong
* @date 2024-12-04 15:35:10
*/
@RestController
@RequestMapping("/attachment")
public class SysAttachmentController {
private ISysAttachmentService iSysAttachmentService;
public SysAttachmentController(ISysAttachmentService iSysAttachmentService) {
this.iSysAttachmentService = iSysAttachmentService;
}
/**
* 查询附件信息列表
*/
@GetMapping("/queryAttachmentList")
public R<List<AttachmentVo>> queryAttachmentList(QueryAttachmentQo attachmentQo)
{
String linkId = attachmentQo.getLinkId();
if (!StringUtils.hasText(linkId)) {
throw new IllegalArgumentException("未获取到业务，无法查询");
}
List<AttachmentVo> list = iSysAttachmentService.queryAttachmentList(attachmentQo);
return R.ok(list);
}
}2.6实体类
package com.ruoyi.file.domain;
import org.apache.commons.lang3.builder.ToStringBuilder;
import org.apache.commons.lang3.builder.ToStringStyle;
import com.ruoyi.common.core.annotation.Excel;
import com.ruoyi.common.core.web.domain.BaseEntity;
/**
* 附件信息对象 sys_attachment
*
* @author congpeitong
* @date 2024-12-04
*/
public class SysAttachment extends BaseEntity
{
private static final long serialVersionUID = 1L;
/** 主键 */
private String id;
/** 附件名称 */
private String fileName;
/** 源文件名称 */
private String originFileName;
/** 文件扩展名 不带. */
private String fileSuffix;
/** 文件所占存储的大小，单位KB */
private Long fileSizeKb;
/** 存储的文件路径 */
private String fileUrl;
/** 文件分类 */
private String fileType;
/** 关联业务id */
private String linkId;
/** 是否删除(0：未删除 1：删除) */
private String deleteFlag;
/** 更新者 */
private String updateUser;
public void setId(String id)
{
this.id = id;
}
public String getId()
{
return id;
}
public void setFileName(String fileName)
{
this.fileName = fileName;
}
public String getFileName()
{
return fileName;
}
public void setOriginFileName(String originFileName)
{
this.originFileName = originFileName;
}
public String getOriginFileName()
{
return originFileName;
}
public void setFileSuffix(String fileSuffix)
{
this.fileSuffix = fileSuffix;
}
public String getFileSuffix()
{
return fileSuffix;
}
public void setFileSizeKb(Long fileSizeKb)
{
this.fileSizeKb = fileSizeKb;
}
public Long getFileSizeKb()
{
return fileSizeKb;
}
public void setFileUrl(String fileUrl)
{
this.fileUrl = fileUrl;
}
public String getFileUrl()
{
return fileUrl;
}
public void setFileType(String fileType)
{
this.fileType = fileType;
}
public String getFileType()
{
return fileType;
}
public void setLinkId(String linkId)
{
this.linkId = linkId;
}
public String getLinkId()
{
return linkId;
}
public void setDeleteFlag(String deleteFlag)
{
this.deleteFlag = deleteFlag;
}
public String getDeleteFlag()
{
return deleteFlag;
}
public void setUpdateUser(String updateUser)
{
this.updateUser = updateUser;
}
public String getUpdateUser()
{
return updateUser;
}
@Override
public String toString() {
return new ToStringBuilder(this,ToStringStyle.MULTI_LINE_STYLE)
.append("id", getId())
.append("fileName", getFileName())
.append("originFileName", getOriginFileName())
.append("fileSuffix", getFileSuffix())
.append("fileSizeKb", getFileSizeKb())
.append("fileUrl", getFileUrl())
.append("fileType", getFileType())
.append("linkId", getLinkId())
.append("deleteFlag", getDeleteFlag())
.append("createBy", getCreateBy())
.append("createTime", getCreateTime())
.append("updateUser", getUpdateUser())
.append("updateTime", getUpdateTime())
.toString();
}
}2.7 Mapper.java
package com.ruoyi.file.mapper;
import java.util.List;
import com.ruoyi.file.domain.SysAttachment;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;
/**
* 附件信息Mapper接口
*
* @author congpeitong
* @date 2024-12-04
*/
@Mapper
public interface SysAttachmentMapper
{
/**
* 查询附件信息
*
* @param id 附件信息主键
* @return 附件信息
*/
public SysAttachment selectSysAttachmentById(String id);
/**
* 查询附件信息列表
*
* @param sysAttachment 附件信息
* @return 附件信息集合
*/
public List<SysAttachment> selectSysAttachmentList(SysAttachment sysAttachment);
/**
* 新增附件信息
*
* @param entities 附件信息
* @return 结果
*/
public int insertSysAttachment(@Param("entities") List<SysAttachment> entities);
/**
* 删除附件信息
*
* @param id 附件信息主键
* @return 结果
*/
public int deleteSysAttachmentById(String id);
/**
* 根据业务id查询附件信息
* @author congpeitong
* @date 2024-12-09 14:38:42
* @param linkId 业务id
* @return int
*/
int deleteSysAttachmentByLinkId(String linkId);
/**
* 批量删除附件信息
*
* @param ids 需要删除的数据主键集合
* @return 结果
*/
public int deleteSysAttachmentByIds(@Param("ids") String[] ids);
}2.8 mapper文件
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.ruoyi.file.mapper.SysAttachmentMapper">
<resultMap type="com.ruoyi.file.domain.SysAttachment" id="SysAttachmentResult">
<result property="id" column="id" />
<result property="fileName" column="file_name" />
<result property="originFileName" column="origin_file_name" />
<result property="fileSuffix" column="file_suffix" />
<result property="fileSizeKb" column="file_size_kb" />
<result property="fileUrl" column="fileUrl" />
<result property="fileType" column="file_type" />
<result property="linkId" column="link_id" />
<result property="deleteFlag" column="delete_flag" />
<result property="createBy" column="create_by" />
<result property="createTime" column="create_time" />
<result property="updateUser" column="update_user" />
<result property="updateTime" column="update_time" />
</resultMap>
<sql id="selectSysAttachmentVo">
select id, file_name, origin_file_name, file_suffix, file_size_kb, fileUrl, file_type, link_id, delete_flag, create_by, create_time, update_user, update_time from sys_attachment
</sql>
<select id="selectSysAttachmentList" parameterType="com.ruoyi.file.domain.SysAttachment" resultMap="SysAttachmentResult">
<include refid="selectSysAttachmentVo"/>
<where>
<if test="fileName != null and fileName != ''"> and file_name like concat('%', #{fileName}, '%')</if>
<if test="originFileName != null and originFileName != ''"> and origin_file_name like concat('%', #{originFileName}, '%')</if>
<if test="fileSuffix != null and fileSuffix != ''"> and file_suffix = #{fileSuffix}</if>
<if test="fileSizeKb != null "> and file_size_kb = #{fileSizeKb}</if>
<if test="fileUrl != null and fileUrl != ''"> and fileUrl = #{fileUrl}</if>
<if test="fileType != null and fileType != ''"> and file_type = #{fileType}</if>
<if test="linkId != null and linkId != ''"> and link_id = #{linkId}</if>
<if test="deleteFlag != null and deleteFlag != ''"> and delete_flag = #{deleteFlag}</if>
<if test="updateUser != null and updateUser != ''"> and update_user = #{updateUser}</if>
</where>
order by create_time desc
</select>
<select id="selectSysAttachmentById" parameterType="String" resultMap="SysAttachmentResult">
<include refid="selectSysAttachmentVo"/>
where id = #{id}
</select>
<insert id="insertSysAttachment">
insert into sys_attachment (id,file_name,origin_file_name,file_suffix,file_size_kb,fileUrl,file_type
,link_id,create_by,create_time)
values
<foreach collection="entities" item="entity" separator=",">
(#{entity.id},#{entity.fileName},#{entity.originFileName},#{entity.fileSuffix},#{entity.fileSizeKb},
#{entity.fileUrl},#{entity.fileType},#{entity.linkId},#{entity.createBy},
#{entity.createTime})
</foreach>
</insert>
<delete id="deleteSysAttachmentById" parameterType="String">
delete from sys_attachment where id = #{id}
</delete>
<delete id="deleteSysAttachmentByIds" parameterType="String">
delete from sys_attachment where id in
<foreach item="id" collection="ids" open="(" separator="," close=")">
#{id}
</foreach>
</delete>
<delete id="deleteSysAttachmentByLinkId" parameterType="String">
delete from sys_attachment where link_id = #{linkId}
</delete>
</mapper>2.9 pojo 总共由三个类 这儿有点不规范，后续再改吧
package com.ruoyi.file.pojo;
import com.ruoyi.common.core.annotation.Excel;
public class AttachmentDto {
/** 主键 */
private String id;
/** 附件名称 */
@Excel(name = "附件名称")
private String fileName;
/** 源文件名称 */
@Excel(name = "源文件名称")
private String originFileName;
/** 文件扩展名 不带. */
@Excel(name = "文件扩展名 不带.")
private String fileSuffix;
/** 文件所占存储的大小，单位KB */
@Excel(name = "文件所占存储的大小，单位KB")
private Long fileSizeKb;
/** 存储的文件路径 */
@Excel(name = "存储的文件路径")
private String fileUrl;
/** 文件分类 */
@Excel(name = "文件分类")
private String fileType;
/** 关联业务id */
@Excel(name = "关联业务id")
private String linkId;
}
package com.ruoyi.file.pojo;
import com.ruoyi.common.core.annotation.Excel;
/**
* 附件vo
* @author congpeitong
* @date 2024-12-04 17:20:03
*/
public class AttachmentVo {
/** 主键 */
private String id;
/** 附件名称 */
@Excel(name = "附件名称")
private String fileName;
/** 源文件名称 */
@Excel(name = "源文件名称")
private String originFileName;
/** 文件扩展名 不带. */
@Excel(name = "文件扩展名 不带.")
private String fileSuffix;
/** 文件所占存储的大小，单位KB */
@Excel(name = "文件所占存储的大小，单位KB")
private Long fileSizeKb;
/** 存储的文件路径 */
@Excel(name = "存储的文件路径")
private String fileUrl;
/** 文件分类 */
@Excel(name = "文件分类")
private String fileType;
/** 关联业务id */
@Excel(name = "关联业务id")
private String linkId;
public String getId() {
return id;
}
public void setId(String id) {
this.id = id;
}
public String getFileName() {
return fileName;
}
public void setFileName(String fileName) {
this.fileName = fileName;
}
public String getOriginFileName() {
return originFileName;
}
public void setOriginFileName(String originFileName) {
this.originFileName = originFileName;
}
public String getFileSuffix() {
return fileSuffix;
}
public void setFileSuffix(String fileSuffix) {
this.fileSuffix = fileSuffix;
}
public Long getFileSizeKb() {
return fileSizeKb;
}
public void setFileSizeKb(Long fileSizeKb) {
this.fileSizeKb = fileSizeKb;
}
public String getFileUrl() {
return fileUrl;
}
public void setFileUrl(String fileUrl) {
this.fileUrl = fileUrl;
}
public String getFileType() {
return fileType;
}
public void setFileType(String fileType) {
this.fileType = fileType;
}
public String getLinkId() {
return linkId;
}
public void setLinkId(String linkId) {
this.linkId = linkId;
}
@Override
public String toString() {
return "AttachmentVo{" +
"id='" + id + '\'' +
", fileName='" + fileName + '\'' +
", originFileName='" + originFileName + '\'' +
", fileSuffix='" + fileSuffix + '\'' +
", fileSizeKb=" + fileSizeKb +
", fileUrl='" + fileUrl + '\'' +
", fileType='" + fileType + '\'' +
", linkId='" + linkId + '\'' +
'}';
}
}
package com.ruoyi.file.pojo;
import java.util.List;
/**
* 附件查询对象
* @author congpeitong
* @date 2024-12-04 17:15:43
*/
public class QueryAttachmentQo {
// 关联的业务id
private String linkId;
// 文件类型
private String fileType;
public String getLinkId() {
return linkId;
}
public void setLinkId(String linkId) {
this.linkId = linkId;
}
public String getFileType() {
return fileType;
}
public void setFileType(String fileType) {
this.fileType = fileType;
}
}2.10 service
package com.ruoyi.file.service;
import java.util.List;
import com.ruoyi.file.domain.SysAttachment;
import com.ruoyi.file.pojo.AttachmentVo;
import com.ruoyi.file.pojo.QueryAttachmentQo;
/**
* 附件信息Service接口
*
* @author congpeitong
* @date 2024-12-04
*/
public interface ISysAttachmentService {
/**
* 查询附件信息
*
* @param id 附件信息主键
* @return 附件信息
*/
public SysAttachment selectSysAttachmentById(String id);
/**
* 查询附件信息列表
*
* @param sysAttachment 附件信息
* @return 附件信息集合
*/
public List<SysAttachment> selectSysAttachmentList(SysAttachment sysAttachment);
/**
* 批量删除附件信息
*
* @param ids 需要删除的附件信息主键集合
* @return 结果
*/
public int deleteSysAttachmentByIds(String[] ids);
/**
* 删除附件信息信息
*
* @param id 附件信息主键
* @return 结果
*/
public int deleteSysAttachmentById(String id);
/**
* 查询附件列表
* @author congpeitong
* @date 2024-12-04 17:24:59
*/
List<AttachmentVo> queryAttachmentList(QueryAttachmentQo attachmentQo);
/**
* 保存或更新附件信息
* @author congpeitong
* @date 2024-12-04 18:50:08
* @param attachments 附件列表
* @return void
*/
void saveOrUpdateAttachment(String bizId, List<SysAttachment> attachments);
}
package com.ruoyi.file.service.impl;
import com.ruoyi.common.core.utils.DateUtils;
import com.ruoyi.common.core.utils.uuid.IdUtils;
import com.ruoyi.common.security.utils.SecurityUtils;
import com.ruoyi.file.domain.SysAttachment;
import com.ruoyi.file.mapper.SysAttachmentMapper;
import com.ruoyi.file.pojo.AttachmentVo;
import com.ruoyi.file.pojo.QueryAttachmentQo;
import com.ruoyi.file.service.ISysAttachmentService;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Transactional;
import org.springframework.util.CollectionUtils;
import org.springframework.util.StringUtils;
import java.util.ArrayList;
import java.util.HashSet;
import java.util.List;
import java.util.Set;
import java.util.stream.Collectors;
/**
* 附件信息Service业务层处理
*
* @author congpeitong
* @date 2024-12-04
*/
@Service
public class SysAttachmentServiceImpl implements ISysAttachmentService
{
@Autowired
private SysAttachmentMapper sysAttachmentMapper;
/**
* 查询附件信息
*
* @param id 附件信息主键
* @return 附件信息
*/
@Override
public SysAttachment selectSysAttachmentById(String id)
{
return sysAttachmentMapper.selectSysAttachmentById(id);
}
/**
* 查询附件信息列表
*
* @param sysAttachment 附件信息
* @return 附件信息
*/
@Override
public List<SysAttachment> selectSysAttachmentList(SysAttachment sysAttachment)
{
return sysAttachmentMapper.selectSysAttachmentList(sysAttachment);
}
/**
* 批量删除附件信息
*
* @param ids 需要删除的附件信息主键
* @return 结果
*/
@Override
public int deleteSysAttachmentByIds(String[] ids)
{
return sysAttachmentMapper.deleteSysAttachmentByIds(ids);
}
/**
* 删除附件信息信息
*
* @param id 附件信息主键
* @return 结果
*/
@Override
public int deleteSysAttachmentById(String id)
{
return sysAttachmentMapper.deleteSysAttachmentById(id);
}
/**
* 查询附件列表 linkId：业务id, fileType：业务类型
* @author congpeitong
* @date 2024-12-04 17:25:21
*/
@Override
public List<AttachmentVo> queryAttachmentList(QueryAttachmentQo attachmentQo) {
List<AttachmentVo> resultList = new ArrayList<>();
SysAttachment sysAttachment = new SysAttachment();
BeanUtils.copyProperties(attachmentQo, sysAttachment);
sysAttachment.setDeleteFlag("0");
List<SysAttachment> sysAttachments = sysAttachmentMapper.selectSysAttachmentList(sysAttachment);
for (SysAttachment attachment : sysAttachments) {
AttachmentVo attachmentVo = new AttachmentVo();
BeanUtils.copyProperties(attachment, attachmentVo);
resultList.add(attachmentVo);
}
return resultList;
}
/**
* 保存附件信息，由于不存在更新所以只进行保存和删除操作
* @author congpeitong
* @date 2024-12-04 18:50:36
* @param bizId 业务id
* @param attachments 附件信息列表
*/
@Override
@Transactional
public void saveOrUpdateAttachment(String bizId, List<SysAttachment> attachments) {
if (!StringUtils.hasText(bizId)) {
throw new IllegalArgumentException("业务id为空，附件未成功保存");
}
// 附件列表为空，则根据业务id删除所有的该业务相关的附件
if (CollectionUtils.isEmpty(attachments)) {
this.sysAttachmentMapper.deleteSysAttachmentByLinkId(bizId);
return;
}
/* 当保存的附件不为空时，查询旧附件信息，保存的附件信息和旧附件信息作对比 */
// 查询已存在的附件
SysAttachment exitFileQuery = new SysAttachment();
exitFileQuery.setLinkId(bizId);
List<SysAttachment> exitFiles = this.sysAttachmentMapper.selectSysAttachmentList(exitFileQuery);
// 数据库中不存在附件直接批量新增
if (CollectionUtils.isEmpty(exitFiles)) {
List<SysAttachment> saveList = attachments.stream()
.peek(attachment -> setAttachmentInfo(bizId, attachment))
.collect(Collectors.toList());
this.sysAttachmentMapper.insertSysAttachment(saveList);
return;
}
// 对比 接口传过来的附件数据和数据库中存在的数据，该新增新增，该删除删除
processAttachments(bizId, attachments, exitFiles);
}
/**
* 比对新旧数据保存至数据库，由于只有新增和删除，因此对比比较简单
* 先根据 附件url对比出 共有的数据
* 接口中过来的数据中去除共有的数据即为新增的数据
* 数据库中已存在的数据去除共有数据即为删除的数据
* @author congpeitong
* @date 2024-12-05 10:51:12
* @param bizId 业务id
* @param newAttachments 接口传过来的数据
* @param existingAttachments 数据库中已经存在的数据
*/
private void processAttachments(String bizId,List<SysAttachment> newAttachments, List<SysAttachment> existingAttachments) {
// 1. 查找共同部分
Set<String> fileUrls = new HashSet<>();
for (SysAttachment newAttachment : newAttachments) {
fileUrls.add(newAttachment.getFileUrl());
}
// 共同部分
List<SysAttachment> commonAttachments = existingAttachments.stream()
.filter(existingAttachment -> fileUrls.contains(existingAttachment.getFileUrl()))
.collect(Collectors.toList());
List<SysAttachment> saveList;
List<String> deleteIds;
// 如果有共同部分，接口数据中除去共同部分的数据为新增的数据，数据库中存在的数据除去共同部分为删除的数据
if (!CollectionUtils.isEmpty(commonAttachments)) {
List<String> commonUrls = commonAttachments.stream()
.map(SysAttachment::getFileUrl)
.collect(Collectors.toList());
saveList = newAttachments.stream()
.filter(attachment -> !commonUrls.contains(attachment.getFileUrl()))
.peek(attachment -> setAttachmentInfo(bizId, attachment))
.collect(Collectors.toList());
deleteIds = existingAttachments.stream()
.filter(attachment -> !commonUrls.contains(attachment.getFileUrl()))
.map(SysAttachment::getId)
.collect(Collectors.toList());
} else { // 如果无共同部分，则接口传过来的数据全部新增，数据库中存在的数据全部删除
saveList = newAttachments.stream()
.peek(attachment -> setAttachmentInfo(bizId, attachment))
.collect(Collectors.toList());
deleteIds = existingAttachments.stream().map(SysAttachment::getId).collect(Collectors.toList());
}
// 操作数据库数据
if (!CollectionUtils.isEmpty(saveList)) {
this.sysAttachmentMapper.insertSysAttachment(saveList);
}
if (!CollectionUtils.isEmpty(deleteIds)) {
this.sysAttachmentMapper.deleteSysAttachmentByIds(deleteIds.toArray(new String[0]));
}
}
/**
* 设置附件信息
* @author congpeitong
* @date 2024-12-05 09:22:13
* @param linkId 业务id
* @param sysAttachment 附件信息
*/
private void setAttachmentInfo(String linkId, SysAttachment sysAttachment) {
if (sysAttachment == null || !StringUtils.hasText(linkId)) return;
// 设置id
sysAttachment.setId(IdUtils.simpleUUID());
// 设置业务id
sysAttachment.setLinkId(linkId);
String fileName = sysAttachment.getFileName();
if (!StringUtils.hasText(fileName)) return;
/* 文件保存后的文件名命名规则为 原文件名_一串日期时间编码.扩展名 例如 附件_202412050950.png 即原文件名为 附件.png */
// 原文件名称，不带扩展名的
String originFileName;
// 文件扩展名 不带 . 的
String fileExtName;
int _index = fileName.indexOf("_");
int dotIndex = fileName.lastIndexOf(".");
if (_index == -1 || dotIndex == -1) return;
fileExtName = fileName.substring(dotIndex + 1);
// 原文件名如果前端传值了按照前端传值的保存，没传值则截取上传后的文件名第一个_前面的然后拼接扩展名
if (!StringUtils.hasText(sysAttachment.getOriginFileName())){
originFileName = fileName.substring(0, _index);
sysAttachment.setOriginFileName(originFileName + "." + fileExtName);
}
sysAttachment.setFileSuffix(fileExtName);
// 设置创建时间
sysAttachment.setCreateTime(DateUtils.getNowDate());
// 设置创建人
sysAttachment.setCreateBy(SecurityUtils.getUsername());
}
}3. 前端
前端使用的是vue2做了一个组件
<!--文件上传/查看组件-->
<template>
<div class="upload-file">
<el-upload
ref="fileUpload"
:action="uploadFileUrl"
:before-upload="handleBeforeUpload"
:file-list="fileList"
:headers="headers"
:on-exceed="handleExceed"
:on-error="handleUploadError"
:on-remove="handleRemove"
:on-preview="handlePreview"
:auto-upload="autoUpload"
:on-progress="handleProgress"
:on-success="handleUploadSuccess"
class="myupload"
multiple
:limit="limit"
list-type="picture-card"
:disabled="isDetail"
>
<i slot="default" class="el-icon-plus" v-if="!isDetail && !isScreenshot"></i>
<div slot="default" class="screenshot" v-if="!isDetail && isScreenshot">
<div class="s-btn"><el-button type="primary" style="padding:5px 10px;">上传文件</el-button></div>
<div class="s-btn" @click.stop="screenshotUpload"><el-button type="primary" style="padding:5px 10px;">上传截图</el-button></div>
</div>
<div slot="file" slot-scope="{file}" style="text-align: center;">
<img class="el-upload-list__item-thumbnail" :src="file.fileUrl"/>
<div class="filetext el-upload-list__item-file-name">{{file.originFileName}}</div>
<div class="el-upload-list__item-actions"
v-if="['png','jpg','jpeg','gif','PNG','JPG','JPEG','GIF','mp4','MP4'].indexOf(file.fileSuffix) != -1" >
<span class="el-upload-list__item-preview" @click="preview(file)">
<i class="el-icon-zoom-in"></i>
</span>
<span @click="handlePreview(file)">
<i class="el-icon-download"></i>
</span>
<span class="el-upload-list__item-delete" @click="remove(file)" v-if="!isDetail">
<i class="el-icon-delete"></i>
</span>
</div>
<div class="el-upload-list__item-actions" v-else>
<span @click="handlePreview(file)">
<i class="el-icon-download"></i>
</span>
<span class="el-upload-list__item-delete" @click="remove(file)" v-if="!isDetail">
<i class="el-icon-delete"></i>
</span>
</div>
</div>
<div slot="tip" v-if="!isDetail">
<div v-if="isShowTip" class="divline">
<slot></slot>
<template v-if="fileSize">
大小不超过 <b style="color: #f56c6c">{{ fileSize }}MB</b></template>
<template v-if="fileType">
格式为 <b style="color: #f56c6c">{{ fileType.join('/') }}</b>的文件
</template>
<slot name="afterbody-tip"></slot>
</div>
</div>
</el-upload>
<!-- 图片预览-->
<el-dialog :visible.sync="dialogVisible" width="50%" append-to-body>
<el-image :src="dialogImageUrl" :zoon-rate="1.2" :max-scale="7" :preview-src-list="dialogImageUrlList" style="width:100%;"></el-image>
</el-dialog>
<!-- 视频预览-->
<el-dialog :visible.sync="videoDialogVisible" width="50%" append-to-body>
<video :src="dialogImageUrl" controls style="width:100%;height:600px;" autoPlay></video>
</el-dialog>
<!-- 粘贴截图-->
<el-dialog :visible.sync="screenshotDialogVisible" width="50%" title="上传截图" destroy-on-close :before-close="pasteBeforeClose" append-to-body>
<div v-if="!pasteimgSrc">
<textarea ref="pasteRef" rows="30" class="area" placeholder="粘贴截图" @paste="pasteInput"></textarea>
</div>
<div v-if="pasteimgSrc">
<el-image :src="pasteimgSrc" :zoon-rate="1.2" :max-scale="7" :preview-src-list="pasteimgSrcList" ></el-image>
</div>
<div slot="footer">
<div class="dialog-footer">
<el-input v-model="screenshotName" placeholder="输入截图名称" style="width: 240px;margin-right:20px;"></el-input>
<el-button type="primary" @click="handleHttpUpload(screenshotFile)">
上传
</el-button>
<el-button type="primary" @click="cancelImage">清除截图</el-button>
<el-button @click="cancel">取消</el-button>
</div>
</div>
</el-dialog>
</div>
</template>
<script>
import { getToken } from "@/utils/auth";
import { Loading } from 'element-ui';
import request from "@/utils/request";
import {getListByReview,downBlobFile} from "@/api/material/attachment";
export default {
name: 'upload-file',
props: {
// 值
value: [Array],
// 数量限制
limit: {
type: Number,
default: 9,
},
// 大小限制(MB)
fileSize: {
type: Number,
default: 20,
},
fileType: {
type: Array,
default: () => ['png', 'jpg', 'jpeg', 'doc', 'xls', 'ppt', 'txt', 'pdf', 'docx', 'xlsx', 'pptx', 'mp4','zip','rar'],
},
// 是否显示提示
isShowTip: {
type: Boolean,
default: true,
},
uploadFileUrl: {
type: String,
default: process.env.VUE_APP_BASE_API + "/file/upload", // 此处自己的微服务有自己的API上下文/服务路由（process.env.VUE_APP_BASE_API）
},
autoUpload: {
type: Boolean,
default: true,
},
attachmentData:{
type: Object,
default: () => {},
},//外面传过来的附件详情的请求参数
linkId:{ // 业务id
type: String,
default: '',
},
isDetail:{
type: Boolean,
default: false,
}, //外面页面如果是查看详情传true,
isScreenshot: {
type: Boolean,
default: false,
}, //是否显示截图上传按钮
},
data() {
return {
number: 0,
uploadList: [],
headers: {
认证key: "认证前缀 " + getToken(),
},
fileList: this.value,
dialogImageUrl: '',
dialogVisible: false,
videoDialogVisible: false,
screenshotDialogVisible: false,
dialogImageUrlList: [],
loadingInstance:null,
pasteimgSrc: '',
pasteimgSrcList: [],
screenshotFile: null,
screenshotName: '',
//静态图片
word: require('@/assets/upload/docx.png'),
ppt: require('@/assets/upload/ppt.png'),
excel: require('@/assets/upload/excel.png'),
pdf: require('@/assets/upload/pdf.png'),
img: require('@/assets/upload/img.png'),
txt: require('@/assets/upload/txt.png'),
mp4: require('@/assets/upload/mp4.png'),
file: require('@/assets/upload/file.png'),
zip: require('@/assets/upload/zip.png'),
}
},
watch: {
value: {
handler(newVal) {
this.fileList = newVal
},
deep: true,
immediate: true
},
linkId: {
handler(newValue, oldValue) {
this.fileList = this.fileList ? this.fileList : []
if(newValue !== oldValue ) {
if(!newValue){
this.fileList.splice(0,this.fileList.length)
}
this.getAttachmentList();
} else {
if(this.fileList.length==0){
this.getAttachmentList();
}
}
},
deep: true,
immediate: true
},
fileList : {
handler(val) {
if(!val){
this.fileList = []
}
this.$nextTick(() => {
let fileElementList = document.getElementsByClassName('el-upload-list__item is-success');
if (fileElementList && fileElementList.length > 0) {
for (let ele of fileElementList) {
let fileName = ele.innerText;
//获取文件名后缀
let fileType = fileName.substring(fileName.lastIndexOf(".") + 1);
let iconElement = ele.getElementsByClassName('el-upload-list__item-thumbnail')[0];
if (['doc','docx','DOC','DOCX'].indexOf(fileType) != -1) {
iconElement.src = this.word // 文档
} else if (['xls','xlsx','XLS','XLSX'].indexOf(fileType) != -1) {
iconElement.src = this.excel // 表格
} else if (['ppt','pptx','PPT','PPTX'].indexOf(fileType) != -1) {
iconElement.src = this.ppt // PPT
} else if (['pdf','PDF'].indexOf(fileType) != -1) {
iconElement.src = this.pdf // PDF
} else if (['txt'].indexOf(fileType) != -1) {
iconElement.src = this.txt // PDF
} else if (['mp4'].indexOf(fileType) != -1) {
iconElement.src = this.mp4 // mp4视频
} else if (['zip','rar'].indexOf(fileType) != -1) {
iconElement.src = this.zip // 压缩
} else if (['jpg','JPG', 'png', 'PNG', 'jpeg', 'JPEG'].indexOf(fileType) != -1) {
}else {
iconElement.src = this.file
}
}
}
})
},
deep: true,
immediate: true
},
screenshotDialogVisible: {
handler(newValue, oldValue) {
if (newValue) {
this.$nextTick(() => {
this.$nextTick(() => {
this.$refs.pasteRef.focus();
})
})
}
},
deep: true,
immediate: true
},
},
methods: {
// //删除当前文件
async remove(file) {
await this.$modal.confirm('您确定要删除该文件?')
let index = this.fileList.indexOf(file)
this.fileList.splice(index, 1)
this.$emit("input",this.fileList);
},
// 上传前校检格式和大小
handleBeforeUpload(file) {
// 校检文件类型
if (this.fileType.length) {
const fileName = file.name.split('.');
const fileExt = fileName[fileName.length - 1];
const isTypeOk = this.fileType.indexOf(fileExt) >= 0;
if (!isTypeOk) {
this.$modal.msgError(`文件类型错误， 请上传${this.fileType.join("/")}格式文件!`);
return false;
}
}
// 校检文件大小
if (this.fileSize) {
const isLt = file.size / 1024 / 1024 < this.fileSize;
if (!isLt) {
this.$modal.msgError(`文件大小不超过${this.fileSize}MB!`);
return false;
}
}
this.number++;
return true;
},
//文件上传时的回调
handleProgress(event, file) {
this.loadingInstance = Loading.service({
text:'附件正在上传中...'
})
},
// 上传成功回调
handleUploadSuccess(res, file) {
try {
this.loadingInstance.close()
if (res.code === 200) {
let fileName = file.name.split('.');
this.uploadList.push({
originFileName: file.name,
fileName: res.data.name,
fileUrl: res.data.url,
fileSizeKb: file.size / 1024,
fileType: this.attachmentData.fileType,
fileSuffix: fileName[fileName.length - 1]
});
this.uploadedSuccessfully();
} else {
this.number--;
this.$modal.msgError(res.msg);
this.$refs.fileUpload.handleRemove(file);
this.uploadedSuccessfully();
}
} catch(e) {
this.loadingInstance.close()
}
},
// 上传结束处理
uploadedSuccessfully(res) {
if (this.number > 0 && this.uploadList.length === this.number) {
//this.uploadList.forEach(item => item.dir = props.dir);
this.fileList = this.fileList.filter((f) => f.fileUrl !== undefined).concat(this.uploadList);
this.uploadList = [];
this.number = 0;
this.$emit("input", this.fileList);
}
},
//文件列表移除文件时的钩子
handleRemove(file) {
this.fileList = this.fileList.filter((f) => !(f === file.fileUrl));
},
// 文件个数限制提示
handleExceed() {
this.$modal.msgError(`只允许上传${this.limit}个文件!`);
},
//文件上传失败构子
handleUploadError() {
this.$modal.msgError('上传文件失败');
},
//文件下载
async handlePreview(file) {
console.log('files',file)
try {
this.loadingInstance = Loading.service({
text:'附件下载中...'
})
await downBlobFile(file.fileUrl, {}, file.fileName);
this.loadingInstance.close()
} catch(e) {
this.loadingInstance.close()
}
},
//文件预览
preview(file) {
this.dialogImageUrlList.splice(0,this.dialogImageUrlList.length)
//let fileType = file.fileUrl.substring(file.fileUrl.lastIndexOf(".") + 1);
if(['png','jpg','jpeg',".gif",'PNG','JPG','JPEG',"GIF"].indexOf(file.fileSuffix) != -1){
this.dialogVisible = true
this.dialogImageUrl = file.fileUrl
this.dialogImageUrlList.push(this.dialogImageUrl)
} else if(['mp4','MP4'].indexOf(fileType) != -1) {
this.dialogImageUrl = file.fileUrl
this.videoDialogVisible = true
}
},
//截图上传弹框
screenshotUpload() {
this.screenshotDialogVisible = true
},
//生成A-Z加数字 随机数
gdCode() {
let str = 'ABCDEFGHIJKLMNOPQRSTUVWXYZ';
let arr = str.split("")
let n = Math.round(Math.random() * (arr.length -1))
return arr[n] + Math.floor(Math.random() * 10)
},
//截图粘贴上传
pasteInput(event) {
this.pasteimgSrcList.splice(0,this.pasteimgSrcList.length)
let item = event.clipboardData?.items[0];
if(!item) {
return
}
if(item &&(item.type.indexOf('image') > -1 )){
let file = item.getAsFile()
this.screenshotFile = file
const reader = new FileReader(); // 创建新的读取文件 FileReader 实例
reader.onload = (e) => {
this.pasteimgSrc = e.target.result // 获取文件内容
this.pasteimgSrcList.push(e.target.result)
}
reader.readAsDataURL(file) // 读取文件内容二进制数据，并将其编码为 base64 的 data url
}
},
//截图上传请求
async handleHttpUpload (file) {
let formData = new FormData();
formData.append('file', file);
//formData.append('dir', props.dir);
try {
const res = await request({
url: "/file/upload",
method: 'post',
headers: this.headers,
data: formData,
});
let fileName = file.name.split('.');
let screenshotFileName = ''
if(this.screenshotName){
screenshotFileName = this.screenshotName + '.' + fileName[fileName.length - 1]
} else {
screenshotFileName = '截图' + this.gdCode() + '.' + fileName[fileName.length - 1]
}
this.fileList.push({
originFileName: screenshotFileName,
fileName: res.data.name,
fileUrl: res.data.url,
fileSizeKb: file.size / 1024,
fileType: this.attachmentData.fileType,
fileSuffix: fileName[fileName.length - 1]
});
this.$emit("input", this.fileList);
this.pasteimgSrc = null
this.screenshotName = ''
} catch (error) {
this.$modal.msgError("上传文件失败");
this.pasteimgSrc = null
this.screenshotName = ''
}
this.screenshotDialogVisible = false
},
//清除粘贴内容和粘贴板
cancelImage() {
this.pasteimgSrc = null
this.screenshotName = ''
navigator.clipboard.writeText('')
},
cancel() {
this.pasteimgSrc = null
this.screenshotName = ''
this.screenshotDialogVisible = false
},
pasteBeforeClose(done) {
this.pasteimgSrc = null
this.screenshotName = ''
done()
},
//获取附件列表
getAttachmentList() {
if(this.attachmentData.linkId) {
let params = {
linkId:this.attachmentData.linkId,
fileType:this.attachmentData.fileType,
}
getListByReview(params).then((res) => {
this.fileList.splice(0,this.fileList.length)
res.data.forEach(item => {
this.fileList.push(item)
})
})
}
},
}
}
</script>
<style scoped lang="scss">
.upload-file{
width:100%;
}
.f-position{
position: relative;
cursor: pointer;
.f-icon{
position: absolute;
top:0;
right:0;
}
}
::v-deep .el-upload-list--picture-card .el-upload-list__item {
width: 130px;
height:130px;
}
::v-deep .el-dialog__header {
padding-bottom: 0 !important;
}
::v-deep .el-dialog__body {
padding:15px 20px;
}
::v-deep .el-upload-list--picture-card .el-upload-list__item-thumbnail {
height:105px;
width:95%;
}
::v-deep .el-upload--picture-card {
width:130px;
height:130px;
}
.filetext{
margin-top:-7px;
}
.divline{
line-height: 24px;
}
.d-auto{
width: 80%;
margin: 0 auto;
margin-top: 11px;
}
.d-auto1{
width: 80%;
margin: 0 auto;
margin-top: 40px;
}
.screenshot{
width: 100%;
display: flex;
flex-direction: column;
}
.s-btn{
width: 100%;
height: 44px;
display: flex;
justify-content: center;
align-items: center;
margin-top:10px;
}
.area {
width:100%;
border:1px solid #dcdfe6;
}
</style>4. 具体使用方式

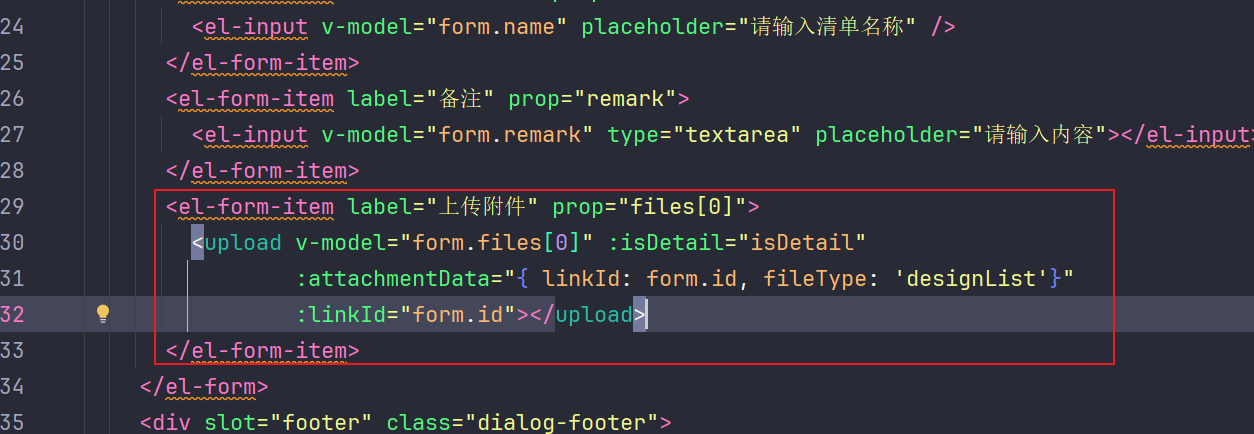

4.1 前端使用
说明：
- form.files[0]:实际上这儿设置的二维数组，存储的是上传的附件信息，如果有多个upload组件引用则是files[1], files[2] ......
- linkId:及业务id
- fileType: 附件的业务类型，只是语义上的意义，其实没有太大的实际意义。用于为业务附件分类的
4.2 后端的使用

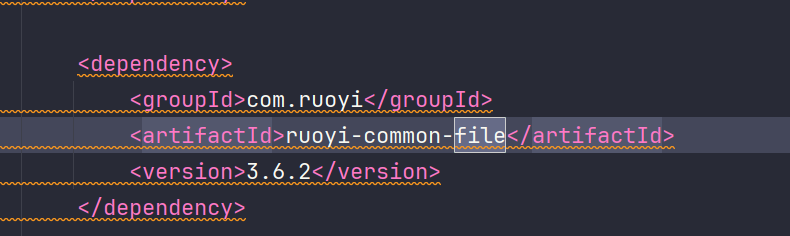

引入附件 common
image-20250219183356775 开启附件服务

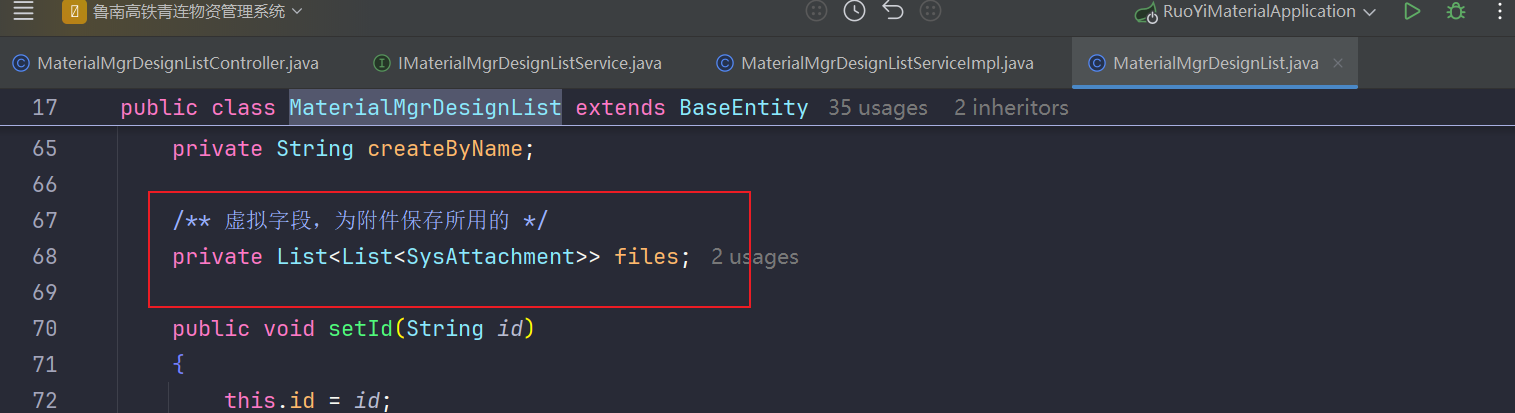

image-20250219183024359 首先入参必须有二维数组，且名字是files，如果不想用files想看注解代码的释义
image-20250219182808931 在保存附件的service方法上打上@Attachment注解，标注 是新增 save 还是 更新 update
image-20250219182824714
image-20250219183106379
5. 最终的释义说明**(mybatis xml的配置相当重要)**
### 数据库xml配置
```yml
# mybatis配置
mybatis:
# 搜索指定包别名
typeAliasesPackage: com.ruoyi.material
# 配置mapper的扫描，找到所有的mapper.xml映射文件
mapperLocations: classpath*:mapper/**/*.xml
```
~注意~：在 `mapperLocation` 中的 `classpath` 后面需要配置 *，否则服务之扫描本服务的xml文件，不会扫描引入的xml文件
正确：classpath*:mapper/**/*.xml
错误：classpath:mapper/**/*.xml
### 开启使用
如果想要使用ruoyi-common-file 需要 在启动类上加上 @EnableAttachment
### 附件保存和更新
需要在相应的server类中添加@Attachment注解，具体使用详见注解文件中的注释
